armStone™
PicoITX Single Board Computer
Merkmale
|

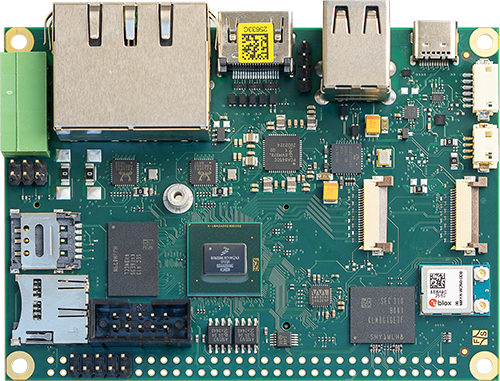

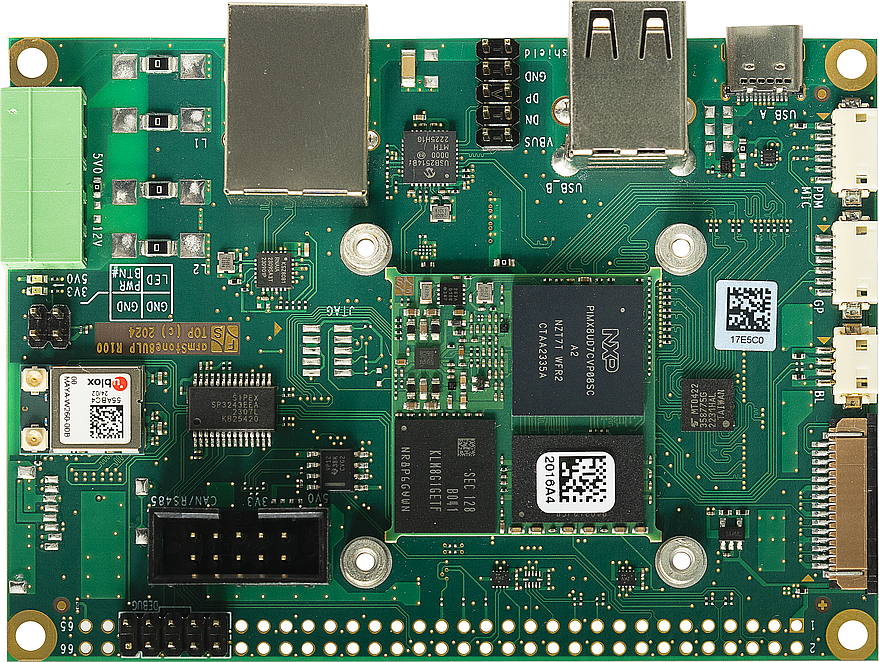

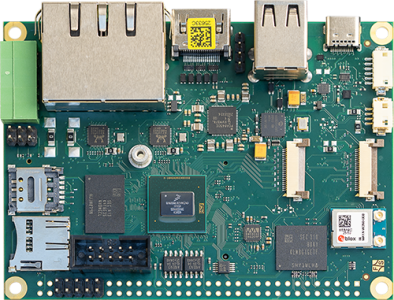

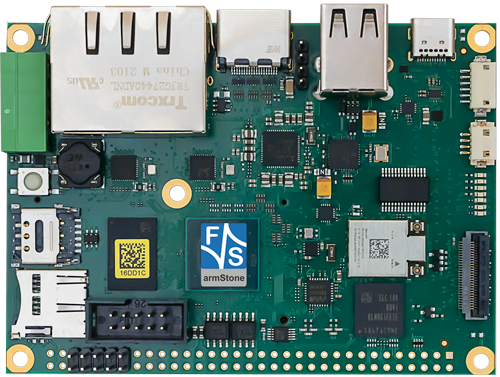

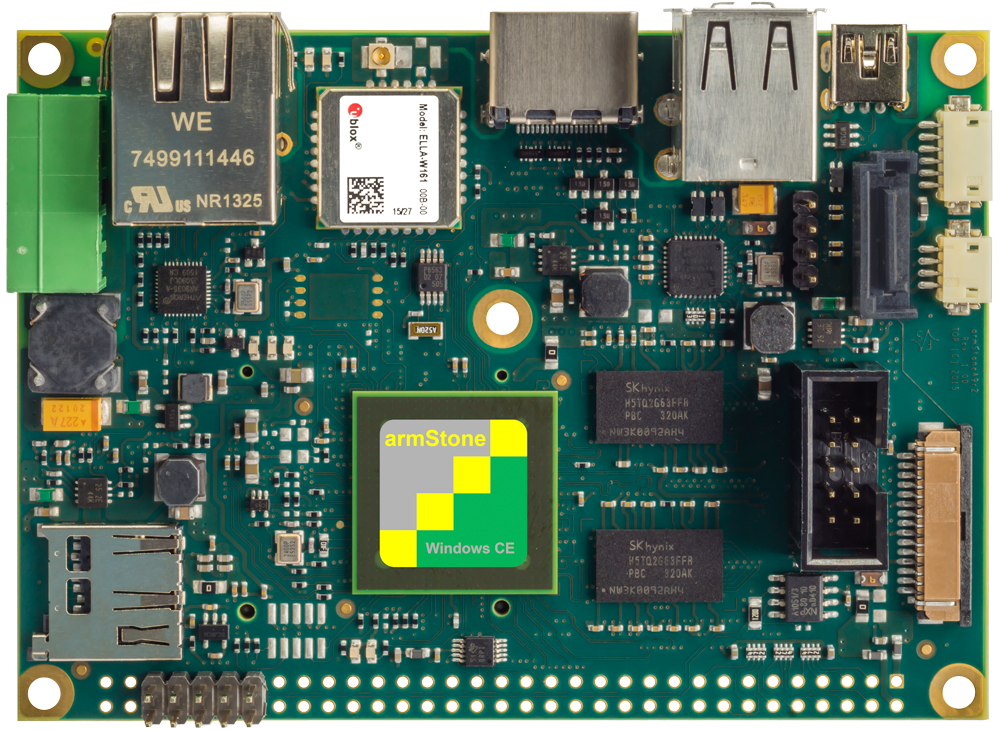

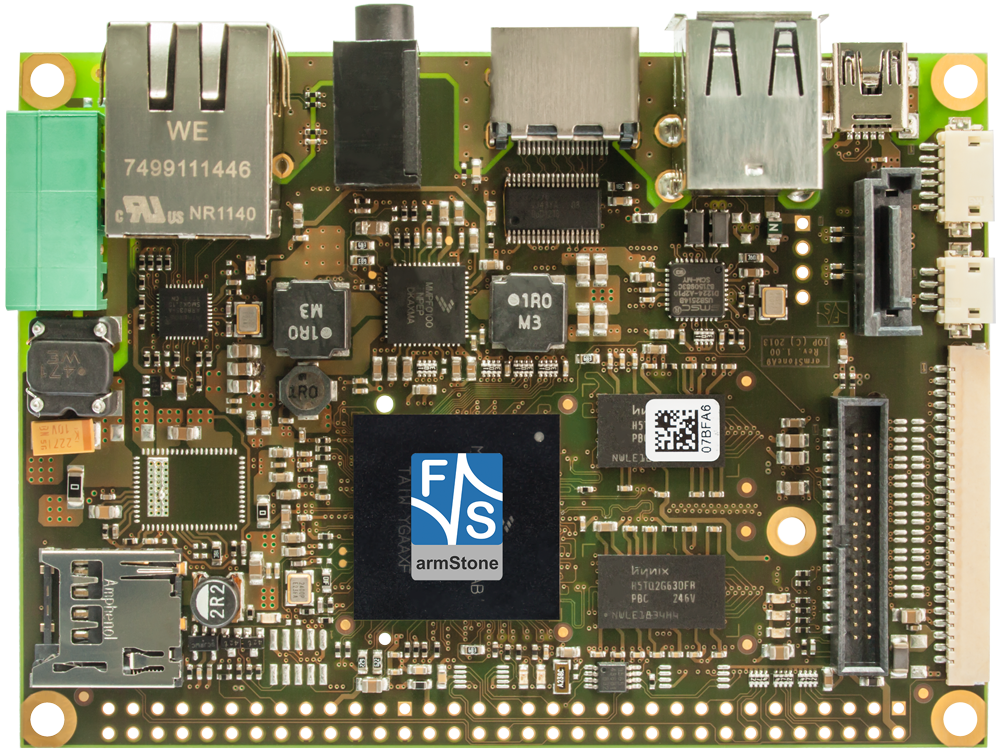

armStone™A5 | armStone™A9 | armStone™A9r2 | armStone™MX8M | armStone™A8 | |
Status | Produktion | Produktion | Produktion | Muster | keine Neuentwicklungen |
CPU | |||||
Typ | NXP Vybrid | NXP i.MX 6 | NXP i.MX 6 | NXP i.MX 8M | Samsung Cortex--A8 |
Kern | ARM Cortex-A5 + Cortex-M4 | ARM Cortex-A9 | ARM Cortex-A9 | ARM Cortex-A53 + Cortex-M4 | ARM Cortex-A8 |
Anzahl der Kerne | Single-/Dual-Core | Solo/DualLite/Quad | Solo/DualLite/Quad | Dual/ Quad | Single-Core |
Frequenz | max. 500MHz + 167MHz | max. 1.2GHz | max. 1GHz | max. 1,5GHz | 800MHz - 1GHz |
L2-Cache | 512KB | max. 1MB | max. 1MB | ||
GPU | NEON | 2D, 3D 600Mpix/s | 3D, 2D 600Mpix/s | 3D GC7000 Lite (4 shader) | PowerVR SGX540 |
Video Decode | 1080p60 | 1080p60 | MPEG2, MPEG4p2 H 263 bis 4Kp60 | ||
Betriebssystem | |||||
Linux | Buildroot (uboot installiert) |
Buildroot Yocto |
Buildroot Yocto |
Yocto | 3.3 |
Windows | WCE 6.0 WEC 7 WEC 2013 |
WEC 7 WEC 2013 |
WEC 2013 | WCE 6.0 R3/WEC 7 | |
Speicher | |||||
Flash | max. 1GB | max. 512MB | max. 512MB SLC max. 32GB eMMC |
max. 1GB SLC NAND max. 32GB eMMC |
128MB (1GB optional) |
RAM | max. 512MB | max. 4GB | max. 4GB DDR3L | max. 8GB LPDDR4 | 256MB (512MB optional) |
Schnittstellen | |||||
SD-Karte | 1x microSD on board | 1x on-board | 1x on-board | 1x optional | |
Ethernet | 2x 10/100Mb IEEE 1588 |
1x 10/100/1000Mb IEEE1588 |
1x 10/100/1000Mb IEEE1588 |
1x 10/100/1000 Mbit | 1-2x 10/ 100Mbit |
WLAN | IEEE 802.11a/b/g/n dual band | IEEE 802.11a/b/g/n | |||
BT | BT 3.0 | BT 2.1+EDR, 4.1 LE | |||
USB Host | 1-2x | 4x | 4x | 2x USB 3.0 2x USB 2.0 |
1 |
USB Device | 1x | 1x | 1x | 1x USB 3.0 OTG | 1 |
CAN | 1-2x | 1x | 2x | 1x | 1 |
UART | 3x | 3x | 5x | 3x (1x RS232, 2x TTL) |
3 |
I2C | 1-2x | 1x | 1x | 4x | 1 |
SPI | 1x | 1x | 2x | 2x | 1 |
Audio | Line In/Out/Mic | Line In/Out/Mic | Line In/Out/Mic | Line In/Out/Mic | IN/ OUT/ MIC |
Digital I/O | max. 66 | max. 66 | max. 66 | max. 32 | max. 66 |
Touch Panel | 4-wire, analog resistive; PCAP-Touch via I2C |
4/5-wire, analog resistive and PCAP Touch via I2C |
4/5-wire, analog resistive and PCAP Touch via I2C |
analog reistive und PCAP Touch ext. via I2C | 4-wire, analog resistive cap.Touch Interface |
Kamera analog/digital | 0/MIPI-CSI | 0/MIPI-CSI | |||
PCIe | 1x | 1x | 1x mit SIM Card Slot | ||
SATA | 1x | 1x | |||
RTC | | ||||
Display | |||||
RGB | 18bit | 18bit | |||
LVDS | 18bit | 2x 18/24bit | 2x 18/24bit | 2x 24bit | WXGA, 18Bit |
CRT/DVI | 0/DVI | 0/DVI | 0/DVI | DVI 1080p | |
Allgemein | |||||
Stromversorgung | 5V/8-14V DC / ±5% | 5V/ 8-14V DC/±5% | 5V DC/±5% | 5V DC/±5% | +5VDC / ±5% |
Leistungsaufnahme | 3W typ. | 4W typ. | 4W typ. | tbd | 4W typ. |
Betriebstemperaturbereich | 0°C - +70°C opt. -25°C - +85°C |
0°C - +70°C opt. -20°C - +85°C |
0°C - +70°C opt. -20°C - +85°C |
0°C - +70°C opt. -20°C - +85°C |
0°C - +70°C (-25°C - +85°C I-Temp. Version) |
Größe | 100x72x15mm (LxBxH) |
100x72x15mm (LxBxH) |
100x72x15mm (LxBxH) |
100x72x15mm (LxBxH) |
100x72x15mm (l x b x h) |
Gewicht | ~55g | ~60g | ~60g | ~60g | ~40g |
Minimale Verfügbarkeit | 2023 | 2027 | 2027 | 2033 | |
armStone™A5 | armStone™A9 | armStone™A9r2 | armStone™MX8M | armStone™A8 |
armStone™, Single Board Computer im PicoITX Formfaktor | Was nützt die beste Hardware ohne Software ? | |
---|---|---|
Alternativ zu Lösungen mit Computer on Module (COM), für die ein Basisboard notwendig ist, bietet sich der Einsatz eines Single Board Computers (SBC) in einem etablierten Formfaktor an. Da die Entwicklung eines Basisboards entfällt, werden Kosten eingespart und die Entwicklungszeit wird erheblich reduziert (Time-To-Market). Voll ausgestattetDie armStone™ bietet alle gängigen Schnittstellen (auf Standardbuchsen oder auf Stiftleisten) an. Ein Display kann einfachst über die LVDS Schnittstelle angeschlossen werden. Weiterhin steht noch eine Display/ Monitorschnittstelle über z.B. DVI zur Verfügung. Der PicoITX Formfaktor ist perfekt ausgelegt für die Entwicklung kleiner, aber leistungsstarker Anwendungen. Mit einer Größe von 100 x 72 mm eignet sich der PicoITX Formfaktor für kompakte stationäre, wie auch für tragbare Geräte. Die Standardbuchsen sind auf der Längsseite herausgeführt und können somit an der Gehäuserückseite platziert werden. Versorgt wird die armStone™ mit einer Single Supply von 5V. Die Leistungsaufnahme kann, abhängig von der CPU, bei nur wenigen Watt liegen, damit kann die armStone™ ohne Lüfter oder Kühlkörper eingesetzt werden. |
Die armStone™-Produkte werden mit vorinstalliertem OS ausgeliefert. Es stehen Windows Embedded CE 6.0 R3 und Windows Embedded Compact 7/2013 (inkl. der Microsoft Lizenz) zur Verfügung. Linux selbstverständlich auch. |
