PicoMOD

Merkmale

  • 80x50mm
  • Single Voltage 3,3V
  • TFT, LVDS, DVI-D
  • hohe Flexibilität
  • nur ein Steckverbinder,
    140 Pins, 0,8 Pitch
  • Address-/Data-Bus
  • Kameraschnittstelle

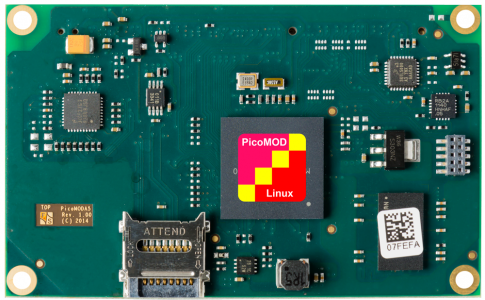

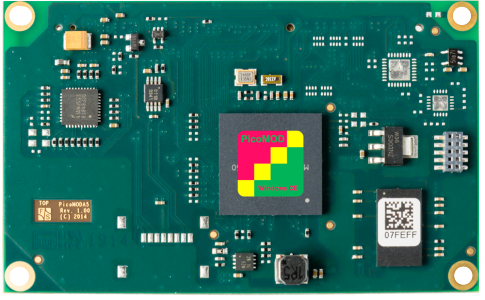

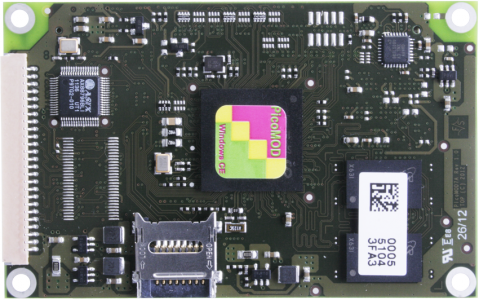

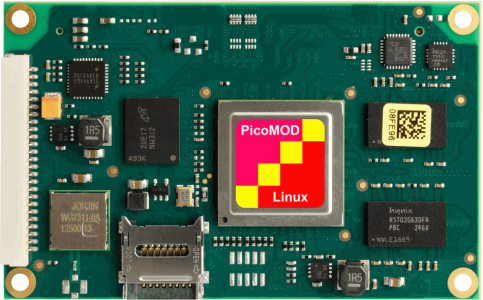

PicoMOD7A PicoMODA9 PicoMOD1.2 PicoMODA5
Status keine Neuentwicklungen Produktion Produktion Produktion
CPU - - - -
Typ Samsung Cortex-A8 NXP i.MX 6 NXP Vybrid NXP Vybrid
Kern Cortex-A8 ARM Cortex-A9 ARM Cortex-A5 + Cortex-M4 ARM Cortex-A5 + Cortex-M4
Anzahl der Kerne - Solo/DualLite Single-/Dual-Core Single-/Dual-Core
Frequenz 1GHz max. 1GHz max. 500MHz & 167MHz max. 500MHz + 167 MHz
L2-Cache - max. 1MB 512KB 512KB
GPU - 2D 600Mpix/s NEON
FPU
NEON
FPU
VPU - 1080p60 - -
Multimedia CPU, 2D, 3D, MFC - - -
Betriebssystem - - - -
Linux - Buildroot
Yocto
- -
Windows WCE 6.0 R3/ WEC 7 WEC 7
WEC 2013
WCE 6.0
WEC 7
WEC 2013
WEC 7
Echtzeit - - MQX -
Speicher - - - -
Flash 128MB/ 1GB Flash max. 512MB max.1GB max. 256MB
RAM 256/ 512MB DDR2 RAM max. 4GB max. 512MB 256MB
Schnittstellen - - - -
SD-Karte on-board/ extern 1x extern/on-board 1x extern 1x extern
1x on-board
Ethernet 10/100Mb 10/100Mb 10/100Mb 10/100Mb
USB Host 1-2 (2.0) 1-2x 1-2x 1x
USB Device 1 (2.0) 1x 1x 1x
CAN 1 1x - 1x
UART - 4x 3x 3-4x
I2C 1 1x 1x 1x
SPI opt. 1x (nur Software) 1x 1x
Audio In/ Out Line In/Out/Mic - Line In/Out/Mic
Digital I/O max. 64 max. 64 - max. 45
Touch Panel 4-Draht, analog resistiv 4-wire, analog resistiv; PCAP Touch über I2C - 4-wire, analog resistive
PCAP-Touch via I2C
Kamera analog/digital - 0/1 - 4/0 optional
Display - - - -
RGB 18bit 18bit 18bit 18bit
LVDS 18bit/24bit 18bit/24bit - -
CRT/DVI 0/DVI 0/1 - -
CSTN - - -
Allgemein - - - -
Stromversorgung +3,3V DC/ ±5% +3,3V DC/ ±5% +3,3V DC/ ±5% +3,3V DC/ ±5%
Leistungsaufnahme 3W typ. - 1,5W typ. 1W typ.
Betriebstemperaturbereich -25 - +85°C (L1), 0°C - +85°C (L2) 0°C - +70°C
opt. -25°C - +85°C
opt. -40°C - +85°C
0°C - +70°C 0°C - +70°C
Größe 80mm x 50mm x 9mm (L x B x H) 80x50x10mm
(LxBxH)
80x50mm
(LxB)
80x50mm
(LxB)
Gewicht ca. 20g ~20g - ~20g
Minimale Verfügbarkeit - 2035 2023 2023
PicoMOD7A PicoMODA9 PicoMOD1.2 PicoMODA5

Kompakte und preiswerte Module für Anzeige, Bedienung und Steuerung.

Wie auch die NetDCU-Familie, werden wir diese Familie regelmäßig um neue pinkompatible Produkte, mit unterschiedlichen RISC-CPUs erweitern. PicoMOD ist die ideale Lösung für den Einsatz in kompakten Geräten, die ein kleines Modul erforderlich machen. Weiterhin bietet sich dieses Modul auch für den Einsatz in Volumenprodukten an, bei denen sich ein Mehraufwand in der Hardwareentwicklung des Basisboards rechnet.
