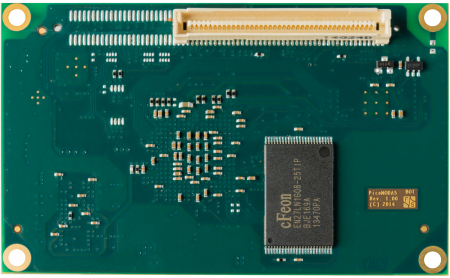

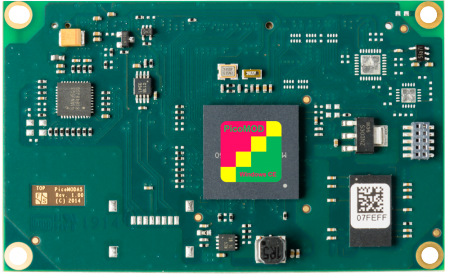

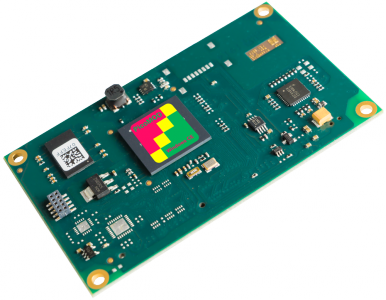

PicoMOD1.2

Computer On Module mit NXP Vybrid CPU




PMOD1.2-WCE60
Status Produktion
CPU -
Typ NXP Vybrid
Kern Cortex-A5
Anzahl der Kerne Single-Core
Frequenz 500MHz
L2-Cache 512kB
GPU NEON
FPU
Betriebssystem -
Windows WCE 6.0
Speicher -
Flash 128MB
RAM 256MB
Schnittstellen -
SD-Karte 1x extern
Ethernet 10/100Mb
USB Host 1-2x
USB Device 1x
UART 3x
I2C 1x
SPI 1x
Display -
RGB 18bit
Allgemein -
Stromversorgung +3,3V DC/ ±5%
Leistungsaufnahme 1,5W typ.
Betriebstemperaturbereich 0°C - +70°C
Größe 80x50mm
(LxB)
Minimale Verfügbarkeit 2023
PMOD1.2-WCE60

Software

software accessory Software .NET Treiber
Treiberpaket zur Nachrüstung, besteht aus C# Treibern für I²C/ SPI/ CAN, sowie dem SPI Treiber in C++.
Bestellnr.: WCE-DOTNET
500,- €

software accessory UpDate Software
Das Programmpaket ermöglicht ein sicheres und einfaches Update Ihres Applikationsprogramms und des Betriebssystems über USB Stick oder SD Card.
Bestellnr.: WCE-UPDATE
500,- €

software accessory Boot Screen
Zeigt dem Anwender während der Bootphase ein hinterlegtes Startbild (BMP File) an.
Bestellnr.: WCE-BOOTSCREEN
500,- €

software accessory Custom Kernel
Erstellung eines kundenspezifischen Kernels. Die Windows CE Komponenten und Registry Einträge (z.B. Display) werden vom Kunden festgelegt. Vom Kunden gestellte Software kann ebenfalls aufgespielt werden.
Bestellnr.: WCE-CUSTIMAGE
500,- €

software accessory Failsafe Flash Filesystem (F3S)
Das Failsafe Flash Filesystem F3S gewährleistet Transaktionssicherheit auf Dateiebene und garantiert Ihnen so die Beständigkeit der Daten im Falle von Stromausfällen oder anderen Störungen.
Bestellnr.: WCE-F3S
1,000,- €

software accessory Display Anpassung (RGB oder LVDS Display unter Windows)
Erstellung eines Treibers für den Touchcontroller unter WCE7 oder WEC13 für Ihr F&S Board.

Bestellnr.: EW-SW-RGB-LVDS-Windows
500,- €


Display und Displaykit

ET070080 B.LCD.15 Display 7" RGB Display mit resistivem Touch
7" TFT (800x480) EDT ET070080DH6
Bestellnr.: B.LCD.15
120,- €

armStone efus  RGB Kit Displaykit RGB
7" WVGA Display mit RGB Schnittstelle und Touchpanel, Anschlusskabel (40pol Filmkabel), Displayadapter und Touchkabel.
Bestellnr.: NDCU-ADP/TFT-KIT
170,- €


Adapter

JTAG Debug Adapter JTAG Debug Adapter
Ermöglicht die Programmierung des Cortex-M4.
Bestellnr.: ADP-CMSIS
69,- €

Adapter RGB to DVI NetDCU/ PicoCOM DVI Adapter
Zum Anschluss der NetDCUA5/ PicoCOMA5/A9X an einen DVI/ HDMI Monitor.
Bestellnr.: ADP-RGB2DVI
50,- €


Workshop

linux windows embedded compact workshop Workshops
Workshops für F&S Boards mit Windows Embedded Compact oder Linux - Einstiegsworkshops - Qt 5 - Asymmetrisches Multiprocessing - Secure Boot
Bestellnr.: NDCU-WS1
Anfrage

Sonstiges

USBSTICK1 USB Stick
USB Memory Stick mit aktuell üblicher Speichergrösse (2GB+) und aufgedrucktem F&S Logo. Getestet wurde dieser USB Stick an allen aktuellen F&S Boards.
Bestellnr.: USBSTICK.1
20,- €


Windows Embedded Lifetime

Feature Available until  End of Mainstream Support End of Extended Support
Windows Embedded Compact 2013 31.05.2028  10.09.2018 10.10.2023
Windows Embedded Compact 7 28.02.2026  12.04.2016 13.04.2021
Windows CE 6.0 28.02.2022  09.04.2013 10.04.2018

Windows Embedded CE 6.0 R3

Windows Embedded CE6.0 R3 bietet Bootloader, Schnittstellentreiber und Kernel (mit beispielsweise Silverlight, Mediaplayer oder IE). Die Schnittstellentreiber fast aller angebotenen Schnittstellen stehen schon fertig zur Verfügung. Mühsames Arbeiten mit dem Platformbuilder entfällt, diese Arbeit haben wir Ihnen schon abgenommen. Sie können Ihr Windowskenntnisse anwenden, indem Sie Ihre Software mit Visual Studio .NET in den Sprachen C, C++, C# oder VB.NET erstellen. Verwenden Sie Schnittstellen wie z.B. I²C auf die gleiche Weise wie eine RS232 Schnittstelle ohne sich mit der darunterliegenden Hardware auseinandersetzen zu müssen. Konfigurieren Sie das Display und andere Einstellungen mit dem F&S Konfigurationstool. So einfach kann Softwareentwicklung sein.

Unter WCE 6.0 steht Ihnen unser FailSafe Flash File System F3S zur Verfügung.

Windows Embedded Features for Vybrid

General

Feature Description Vybrid WEC 2013
.NET Support Library to easily access DIO, CAN, I²C and SPI from .NET Compact Framework
AnalogIn Stream driver to easily access the analog inputs
Audio Codec Support for Microphone, LineIn and LineOut.
Implements Mixer interface and special F&S mixer control panel applet to easily change settings.
BusEnum2 Support for asynchronous loading of drivers. Use events to start loading of drivers.
Broadcast Stream driver
Boards can be easily identified and configured over LAN connection
CAN Stream driver to easily access CAN interface. Special tool suit to generate traffic or check communication.
Digital I/O  Stream driver to configure pins as input, output or interrupt.
Possibility to adjust drive strength or enable/disable internal pull-up or pull-down. Settings can be stored pin registry.
Display Display driver can be configured by registry settings without modifying operating system.
Display Multi-Monitor Support
Adjustable by registry

Display 2D software acceleration using NEON co-processor
Multiple overlays with alpha blending
Display 2D hardware acceleration
3D OpenGL ES 1.1 and 2.0 hardware acceleration
Multiple overlays with alpha blending
Multiple monitor support (incl. 2D acceleration and Video support)

Firmware Update Software to update Bootloader and/or operating system from running operating system.
Software Update Program to update application and registry settings from USB stick, SD card or other source.
Includes automatic detection. Can incorporate with Firmware Update
I²C Stream driver
Support for hardware I²C controller (NI2C)
Support for using GPIOs as I²C (I²C)
Keyboard Support for German 0407, Spanish 040A, French 040C, Italy 0410 and English 0409
Matrix keyboard support: Use IO pins for keyboard
SPI Stream driver
Support for hardware SPI controller
Touch Resistive touch driver with virtual key support - Capacitive touch driver for ATMEL EDT and others
Extended USB mouse driver to accept absolute coordinates
USB Host EHCI and OHCI driver
USB Device
KBDHID Extended MS kbdhid - Support for all keys on the keyboard
MOUTOUCHHID Support for absolute coordinates
Power Management Support for screen saver and touch activation
PWM Stream driver
Video Streaming Filter framework for streaming video over HTTP
VoIP Voice over IP sample solution
QT 4.8x Support for QT 4.8. framework.

File System

Feature Description Vybrid WEC 2013
F&S BinFS Bug fixed BinFS file system for XIP images
F3S F&S Secure Flash File System
Optimized throughput on all file operations
Wear-Leveling strategies to reduce flash abrasion (including Garbage Collector)
Transaction-based concept already cooperates with a lot of applications
Filesystem
Filter Driver
Used to limit access to file system.
Possible restrictions: Move, Delete, Rename
Filesystem Redirect Driver Redirects file system access from one directory to another.
FAT/TFAT Microsoft Windows Embedded FAT/TFAT solution.
NAND Driver 16 bit hardware ECC

Services

Feature Description Vybrid WEC 2013
Telnet Server Enabled by default. Easy access to command shell.
FTP Server
HTTPD Server Use device as web server. Create ISAPI extensions in C/C++. HTTPD DirectShow stream filter (i.e. camera)
OpenSSH Offers SSH server functionality for Windows Embedded. Based on OpenSSH
SFTP
SCP
SMTP
SSH SCP/SFTP server SSH Library (also used from SMTP).
SMTP SMTP library to send EMail

Tools

Feature Description Vybrid WEC 2013
Bootscreen Showing custom image during boot.
Control Panel Standard Windows Embedded Control Panel with additional tools.
CE Remote Display Driver and application to access desktop of device remotely.
ndcucfg Command line configuration tool.
Can be used locally, over Telnet connection and over serial connection.
Registry editing
Reading/writing of boot loaders and splash screen
User administration
Certificate administration
....
Usage:
* Can be used in own applications as DLL.
* As a command line tool from telnet or serial debug console
Update tool Update of boot loader
Update on WinCE image
Registry changes
Update of user application
Runs from SD/USB/LAN
F&S 2D control utility Control panel applet
Change 2D acceleration on the fly
F&S Board Config Control panel applet
Check hardware revision, version of boot loader, version of WinCE image and much more.
Change system startup and registry.
F&S Audio Mixer Control panel applet
Change audio features like volume, bass, treble, input ...
F&S SSH/SMTP control utility Control panel applet
Start stop SSHD service
Send test EMail by SMTP
F&S USB Loader Uses USB device connection to update Bootloader, operating system, boot screen, configuration information, partition information.
Can be used to update software or to automate production.
F&S Mfg Tool Modified NXP Tool for board bring up and software installation


PicoMOD1.2 - Product Flyer


PicoMOD1.2 - Hardware


PicoMOD1.2 - Linux


PicoMOD1.2 - Windows Embedded CE/Compact


PicoMOD1.2 - Display

Variante

PicoMOD1.2 TOP Windows PMOD1.2-WCE60
NXP Vybrid Cortex-A5, 256MB RAM,128MB Flash, Ethernet, CAN, RGB, 0°C - +70°C, 3.3V Versorgung, Windows Embedded CE 6.0
Bestellnr.: PMOD1.2-WCE60
Anfrage

Software

software accessory Software .NET Treiber
Treiberpaket zur Nachrüstung, besteht aus C# Treibern für I²C/ SPI/ CAN, sowie dem SPI Treiber in C++.
Bestellnr.: WCE-DOTNET
500,- €

software accessory UpDate Software
Das Programmpaket ermöglicht ein sicheres und einfaches Update Ihres Applikationsprogramms und des Betriebssystems über USB Stick oder SD Card.
Bestellnr.: WCE-UPDATE
500,- €

software accessory Boot Screen
Zeigt dem Anwender während der Bootphase ein hinterlegtes Startbild (BMP File) an.
Bestellnr.: WCE-BOOTSCREEN
500,- €

software accessory Custom Kernel
Erstellung eines kundenspezifischen Kernels. Die Windows CE Komponenten und Registry Einträge (z.B. Display) werden vom Kunden festgelegt. Vom Kunden gestellte Software kann ebenfalls aufgespielt werden.
Bestellnr.: WCE-CUSTIMAGE
500,- €

software accessory Failsafe Flash Filesystem (F3S)
Das Failsafe Flash Filesystem F3S gewährleistet Transaktionssicherheit auf Dateiebene und garantiert Ihnen so die Beständigkeit der Daten im Falle von Stromausfällen oder anderen Störungen.
Bestellnr.: WCE-F3S
1,000,- €

software accessory Display Anpassung (RGB oder LVDS Display unter Windows)
Erstellung eines Treibers für den Touchcontroller unter WCE7 oder WEC13 für Ihr F&S Board.

Bestellnr.: EW-SW-RGB-LVDS-Windows
500,- €


Display und Displaykit

ET070080 B.LCD.15 Display 7" RGB Display mit resistivem Touch
7" TFT (800x480) EDT ET070080DH6
Bestellnr.: B.LCD.15
120,- €

armStone efus  RGB Kit Displaykit RGB
7" WVGA Display mit RGB Schnittstelle und Touchpanel, Anschlusskabel (40pol Filmkabel), Displayadapter und Touchkabel.
Bestellnr.: NDCU-ADP/TFT-KIT
170,- €


Adapter

JTAG Debug Adapter JTAG Debug Adapter
Ermöglicht die Programmierung des Cortex-M4.
Bestellnr.: ADP-CMSIS
69,- €

Adapter RGB to DVI NetDCU/ PicoCOM DVI Adapter
Zum Anschluss der NetDCUA5/ PicoCOMA5/A9X an einen DVI/ HDMI Monitor.
Bestellnr.: ADP-RGB2DVI
50,- €


Workshop

linux windows embedded compact workshop Workshops
Workshops für F&S Boards mit Windows Embedded Compact oder Linux - Einstiegsworkshops - Qt 5 - Asymmetrisches Multiprocessing - Secure Boot
Bestellnr.: NDCU-WS1
Anfrage

Sonstiges

USBSTICK1 USB Stick
USB Memory Stick mit aktuell üblicher Speichergrösse (2GB+) und aufgedrucktem F&S Logo. Getestet wurde dieser USB Stick an allen aktuellen F&S Boards.
Bestellnr.: USBSTICK.1
20,- €


Kompatibel Mehr Leistung

PicoMOD1.2 ist der pinkompatible Nachfolger für die PicoMOD1. Alle Schnittstellen befinden sich am Stecker an der exakt gleichen Position wie bei der PicoMOD1. Die Software ist zu großen Teilen kompatibel mit dem Vorgängermodell.

Ein Umstieg auf das neue Modell sollte also problemlos machbar sein.



Wurde die PicoMOD1 noch von einer 400MHz ARM9 CPU angetrieben so ist es bei der PicoMOD1.2 eine moderne Cortex-A5 CPU mit 500MHz. Auch Flash Speicher und RAM Speicher wurden deutlich vergrößert.
