FS 8ULP OSM-SF-V1I-LIN

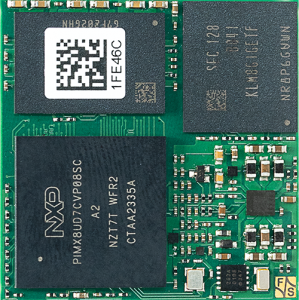

OSM Size S with NXP i.MX 8ULP CPU
|
|
For the start of development, we recommend: |
| FS 8ULP OSM-SF-V1I-LIN | ||
| State | Samples | |
| CPU | ||
| CPU | NXP i.MX 8ULP | |
| Core | ARM Cortex-A35 Cortex-M33 Hifi 4 DSP |
|
| No of Cores | 2x A35 + M33 + Hifi 4 DSP | |
| Frequency | 800MHz + 216MHz + 600MHz | |
| L2-Cache | 512kB | |
| GPU | 2D, 3D: ES™ 3.1, CL™, VG™ 1.1 | |
| Operating System | ||
| Linux | Yocto (uboot installed) |
|
| Real Time | FreeRTOS | |
| Memory | ||
| Flash | 64 kbit EEPROM | |
| eMMC | 8GB eMMC | |
| RAM | 1GB LPDDR4x32 | |
| Interfaces | ||
| SD-Card | 1x SDIO | |
| Ethernet | 1x RMII | |
| USB Host | 1x OTG 2.0 | |
| USB Device | 1x OTG 2.0 | |
| CAN | 1x | |
| UART | 5x | |
| I2C | 3x | |
| SPI | 2x | |
| Audio | 2x I2S | |
| Digital I/O | 20 GPIO_A/_B/_C[4..7] |
|
| Touch Panel | via I2C or USB | |
| Camera | MIPI-CSI (2 lanes) |
|
| RTC | PCF85263ATL | |
| More | 5x PWM, BL-PWM, 2x DAC | |
| Display | ||
| RGB | 18 bit 3V3 |
|
| MIPI-DSI | 1x 4 Lanes | |
| Common | ||
| Supply Voltage | 5V DC/±5% | |
| Power Consumption | 1W typ. | |
| Operating Temperature | -25°C - +85°C | |
| Size | 30x30mm | |
| Weight | ~5g | |
| Long Term Availability | 2038 |
 |
Starter Kit FS 8ULP OSM-SF Linux Evaluation kit for FS 8ULP OSM-SF with base board, OSM adapter, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: OSM8ULP-SKIT1 |
360,- € |
Software
 |
Display Customization (MIPI-DSI Display under Linux) Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board. The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display. SKU: EW-SW-MIPI-DSI-Linux |
1,000,- € | ||
|
Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW |
700,- € | ||
|
Secure Boot as a Service The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme. SKU: Linux-SBS |
500,- € |
Displays and Display Kits
 |
3.5" MIPI-DSI Display with PCAP Touch (long-term available) 3.5" TFT (640x480) MIPI-DSI Display with PCAP Touch (TFT-3.5"-MIPI-DSI-PCAP Touch) SKU: B.LCD.22 |
80,- € |
Touch-Kits
 |
Resistive Touch Kit 2 For the connection of a resistive touch panel to boards with 6pol Hirose socket. SKU: SINTF-ADP-RTI2C |
Request | ||
 |
PCAP Touch Kit for EDT Kit to connect an EDT PCAP touch panel SKU: ADP-EDTTOUCH2 |
35,- € | ||
Cables
 |
Capacitive Touch Cable 6-pin cable with matching connector for connecting an I2C touch to F&S boards SKU: B.MKAB.47 |
10,- € |
Adapters
| MIPI-DSI to LVDS Adapter Allows the connection of an LVDS display to a starter kit with a 30-pin MIPI-DSI (display) socket. SKU: ADP-MIPI2LVDS1 |
25,- € | |||
 |
Adapter board MIPI-DSI (JILI30) to RGB for EDT Unified Series Enables conversion of MIPI-DSI (JILI30) to RGB signals. SKU: ADP-MIPI2RGB1 |
30,- € |
Workshops
 |
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request | ||
Other Accessories
 |
USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € | ||
 |
Heat Spreader OSM Size-S Heat Spreader for cooling the OSM Size-S modules SKU: MHS.OSM.1 |
10,- € |
Variants
 |
FS 8ULP OSM-SF-V1I-LIN SKU: OSM8ULP-V1I |
Request | ||
|
FS 8ULP OSM-SF-V2I-LIN SKU: OSM8ULP-V2I |
Request | ||
Starterkit
|
Starter Kit FS 8ULP OSM-SF Linux Evaluation kit for FS 8ULP OSM-SF with base board, OSM adapter, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: OSM8ULP-SKIT1 |
360,- € |
We provide a tested software environment for the OSM modules with NXPs i.MX8ULP.Part of this environment is the Linux Yocto release and the BSP for the Cortex-M33.Announcements about new versions of this package are made in the support forum.
Yocto
| Architecture | Type | Release Name | Bootloader | Kernel | OS | Help File | Software |
|---|---|---|---|---|---|---|---|
| FSIMX8ULP | Yocto | fsimx8ulp-Y2024.04-pre | U-Boot 2024.04 | Linux 6.1.55 | Yocto 4.2 Mickledore |
For the CPU NXP i.MX8ULP F&S offers a Yocto based environment. In addition, F&S provide a BSP for FreeRTOS and bare metall programming. This BSP makes it easier to use features of Cortex-M33.
Yocto has established itself as the standard for Linux build environments in recent years. Our standard configuration, which is intended to give a first impression of the module's functionality, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, X11R7, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and much more.
F&S also offers a virtual machine (based on VirtualBox) with an installed Linux based on the Fedora distribution for free download. All packages necessary to translate our software are already installed. All services (NFS, TFTP) for working with our boards are also installed. Our BSP is unpacked and precompiled in the right directories. With this virtual machine it doesn't matter whether you use Windows or Linux as the host. Simply download the VHD, import it into VirtualBox and development can begin immediately.
FreeRTOS
In addition to the 2 Cortex-A35 cores, the NXP i.MX 8ULP SoC also has a Cortex-M33 core. The Cortex-M33 core is particularly suitable for real-time tasks or for power saving.
F&S offers a completely tested BSP for the use of the Cortex-M33 for FreeRTOS or Bare Metal application.
Start Your Development in Less Than an Hour - F&S Development Machine - Fedora 36
Fedora 36 is a VirtualBox Appliance based on Fedora 36, provided by F&S.
You will need less than an hour to start your development with this machine!
It is available for our customers for free.
VirtualBox is a high performance product for enterprise customers, it is also the only professional solution that is freely available as Open Source Software under the terms of the GNU General Public License (GPL) version 2.
The F&S Development Machine contains installed Board Support Packages for:
- fsimx8mp-Y2023.09 (/home/developer/fsimx8mp-Y2023.09)
- fsimx8mm-Y2023.10 (/home/developer/fsimx8mm-Y2023.10)
- fsimx8mm-B2023.11 (/home/developer/fsimx8mm-B2023.11)
- fsimx8mn-Y2024.02 (/home/developer/fsimx8mn-B2024.02)
More BSP will be included. Please see our support forum for updates.
The F&S toolchain is installed, the source code is extracted and ready to run. Needed system packages and essential tools are installed, too.
Besides that, it contains a configured environment for Qt development (Qt) with cross-compile/debug kit, deployment strategy and demo application.
Please notice that it is required to register on our website to download this machine.
