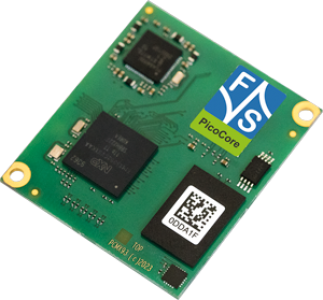

PicoCore™MX93
Computer On Module with NXP i.MX 93 CPU
For the start of development, we recommend: |
PicoCore™MX93 | ||
State | Production | |
CPU | ||
CPU | NXP i.MX 93 | |
Core | ARM Cortex-A55 Cortex-M33 NPU |
|
No of Cores | 2x A55 + M33 | |
Frequency | 1,7GHz + 250MHz | |
L2-Cache | 2x64kB L2 + 256kB L3 | |
GPU | PXP | |
Video | NPU | Machine Learning | |
Operating System | ||
Linux | Yocto (uboot installed) |
|
Real Time | FreeRTOS | |
Memory | ||
Flash | EEPROM | |
eMMC | max. 32GB EEPROM | |
RAM | max. 2GB LPDDR4 | |
Interfaces | ||
SD-Card | max. 2x | |
Ethernet | max. 2x 100/1000Mb opt. RGMII |
|
WiFi | WIFI6 | |
BT | 5.2 | |
USB Host | 1x OTG 2.0 | |
USB Device | 1x OTG 2.0 | |
CAN | max. 2x CAN-FD | |
UART | max. 8x | |
I2C | max. 6x | |
SPI | max. 8x | |
Audio | Line In/ Out/ Mic/ Headphone/ I2S | |
ADC | 4x | |
Touch Panel | via I2C | |
Camera analog/digital | MIPI-CSI | |
RTC | PCF85263ATL | |
additional Interfaces | max. 4x PWM, SPDIF, ESAI, SAI, SSI | |
Display | ||
RGB | 18 Bit | |
LVDS | 1x 24 Bit | |
MIPI-DSI | 1x 4 Lanes | |
Common | ||
Supply Voltage | +3.8V bis 5.5VDC | |
Power Consumption | 3W typ. | |
Operating Temperature | 0°C - +70°C opt. -20°C - +85°C opt. -40°C - +85°C |
|
Size | 35x40mm (LxB) |
|
Weight | ~10g | |
Long Term Availability | 2035 |
