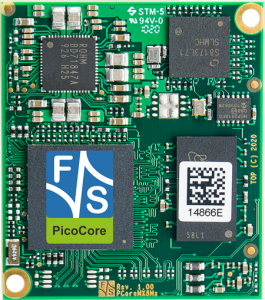

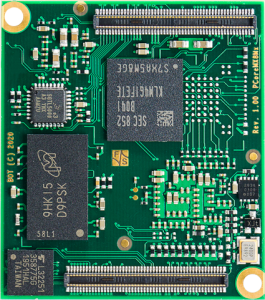

PicoCore™MX8MN
Computer On Module with NXP i.MX 8M Nano CPU
|
|
For the start of development we recommend: The PicoCore™MX8MN is mentioned in the February issue of Computer&Automation. Read the article (German only) on page 21. The digital magazine Elektroniknet also reports on the PicoCore™MX8MN. Read the article here (German only). |
| PicoCore™MX8MN | ||
| State | Production | |
| CPU | ||
| CPU | NXP i.MX 8M Nano | |
| Core | ARM Cortex-A53 Cortex-M7 |
|
| No of Cores | 1, 2, 4 + M7 | |
| Frequency | max. 1.5GHz + 650MHz | |
| L2-Cache | 512KB | |
| GPU | 2D/3D GC7000 UltraLite (2 shader) | |
| Operating System | ||
| Linux | Buildroot/ Yocto (uboot installed) |
|
| Real Time | FreeRTOS | |
| Memory | ||
| Flash | max. 512MB SLC NAND EEPROM |
|
| eMMC | max. 64GB | |
| RAM | max. 2GB LPDDR4 x16 | |
| Interfaces | ||
| SD-Card | 2x extern | |
| Ethernet | max. 2x 100/1000Mb opt. RGMII |
|
| WiFi | 802.11ac/a/b/g/n | |
| BT | 5.3 | |
| USB Device | 1x OTG 2.0 | |
| CAN | 1x | |
| UART | max. 4x | |
| I2C | max. 4x | |
| SPI | max. 2x | |
| Audio | Line In/ Out/ Mic/ Headphone opt. I2S |
|
| Touch Panel | via I2C or USB | |
| Camera | MIPI CSI | |
| PCIe | 1x | |
| RTC | extern | |
| More | max. 4x PWM, SPDIF, ESAI, SAI, SSI | |
| Display | ||
| LVDS | 2x 4 Lanes | |
| MIPI-DSI | 1x 4 Lanes | |
| Common | ||
| Supply Voltage | +3.8V bis 5.5VDC | |
| Power Consumption | 2W typ. | |
| Operating Temperature | 0°C - +70°C -20°C - +85°C |
|
| Size | 35x40mm | |
| Weight | ~10g | |
| Long Term Availability | 2034 |

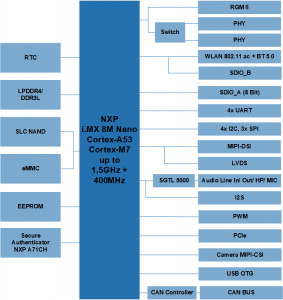

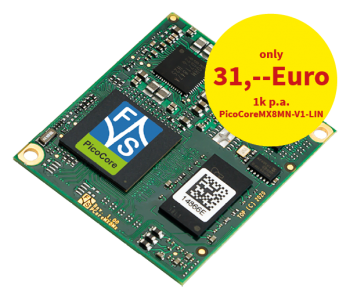

| PicoCore™MX8MN-V1-LIN | PicoCore™MX8MN-V5-LIN | |
| State | Produktion MOQ 500 Stück | Produktion |
| CPU | - | - |
| CPU | NXP i.MX 8M Nano | NXP i.MX 8M Nano |
| Core | ARM Cortex-A53 Cortex-M7 |
ARM Cortex-A53 Cortex-M7 |
| No of Cores | 4 | 4 |
| Frequency | 1,5GHz + 650MHz | 1.5GHz + 630MHz |
| L2-Cache | 512KB | 512KB |
| GPU | 2D/3D GC7000 UltraLite (2 shader) | 2D/3D GC7000 UltraLite (2 shader) |
| Operating System | - | - |
| Linux | Buildroot/ Yocto (uboot installed) |
Buildroot/ Yocto (uboot installed) |
| Real Time | FreeRTOS | FreeRTOS |
| Memory | - | - |
| Flash | 256MB NAND | 4GB eMMC |
| eMMC | max. 64GB | max. 64GB |
| RAM | 256MB DDR3L | 512MB DDR3L |
| Interfaces | - | - |
| SD-Card | 2x extern | 2x extern |
| Ethernet | RGMII | 2x 100/1000Mb |
| USB Device | 1x OTG 2.0 | 1x OTG 2.0 |
| CAN | - | 1x |
| UART | max. 4x | max. 4x |
| I2C | max. 4x | max. 4x |
| SPI | max. 2x | max. 2x |
| Audio | I2S | Line In/Out/Mic/Headphone |
| Touch Panel | via I2C or USB | via I2C or USB |
| Camera | MIPI CSI | MIPI CSI |
| PCIe | 1x | 1x |
| RTC | extern | extern |
| More | max. 8x PWM, SPDIF, ESAI, SAI, SSI, ADR Data Bus | max. 8x PWM, SPDIF, ESAI, SAI, SSI, ADR Data Bus |
| Display | - | - |
| LVDS | - | 2x 24bit |
| MIPI-DSI | 4 lanes | - |
| Common | - | - |
| Supply Voltage | +3.8V bis 5.5VDC | +3.8V bis 5.5VDC |
| Power Consumption | 2W typ. | 2W typ. |
| Operating Temperature | 0°C - +70°C | 0°C - +70°C |
| Size | 35x40mm | 35x40mm |
| Weight | ~10g | ~10g |
| Long Term Availability | 2034 | 2034 |
| PicoCore™MX8MN-V1-LIN | PicoCore™MX8MN-V5-LIN |
 |
Starterkit PicoCore™MX8MN Linux PicoCore™MX8MN-V5-LIN, base board, display, cable kit, access data to documentation and Software SKU: PCoreMX8MN-SKIT-LIN |
360,- € |
Software
 |
Secure Boot as a Service The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme. SKU: Linux-SBS |
500,- € | ||
|
Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW |
700,- € | ||
|
Display Customization (MIPI-DSI Display under Linux) Creation of a DeviceTree / kernel (Buildroot or Yocto) for your F&S Board. The DeviceTree / kernel contains the appropriate entries for your MIPI-DSI display. SKU: EW-SW-MIPI-DSI-Linux |
1,000,- € |
Displays
 |
3.5" MIPI-DSI Display with PCAP Touch (long-term available) 3.5" TFT (640x480) MIPI-DSI Display with PCAP Touch (TFT-3.5"-MIPI-DSI-PCAP Touch) SKU: B.LCD.22 |
80,- € |
Touch Kits
 |
Resistive Touch Kit For connecting a resistive Touch panel to F&S boards with 4-poles touch connector. SKU: SINTF-ADP-RESTOUCH |
35,- € | ||
 |
Resistive Touch Kit 2 For the connection of a resistive touch panel to boards with 6pol Hirose socket. SKU: SINTF-ADP-RTI2C |
Request | ||
Cables
 |
LVDS Cable LVDS cable with JAE FI X30 on one side and open ends on the other side SKU: B.MKAB.53 |
22,- € | ||
 |
30poles Film Cable Film cable, 30pol., 0,5mm, l=100mm for displays To connect our B.LCD.22 display via ADP-MIPI2MIPI1 SKU: B.MKAB.55 |
10,- € | ||
 |
LVDS/MIPI Adapter Cable LVDS/MIPI cable with two 30pin connectors each (JAE X30HL-B to JAE X30HL-B) SKU: B.MKAB.44 |
22,- € |
Adapters
 |
MIPI Camera Kit Adapter module with camera SKU: ADP-MIPICAM1 |
100,- € | ||
| MIPI-DSI to LVDS Adapter Allows the connection of an LVDS display to a starter kit with a 30-pin MIPI-DSI (display) socket. SKU: ADP-MIPI2LVDS1 |
25,- € | |||
 |
mPCIe Module with WLAN/BT mPCIe-Full-Mini Type F1 or mPCIe-Half-Mini Type H1 module with WLAN 2.4/ 5 GHz und BT5.0 LE SKU: ADP-mPCIe-WLAN |
40,- € | ||
 |
Adapter board MIPI-DSI (JILI30) to RGB for EDT Unified Series Enables conversion of MIPI-DSI (JILI30) to RGB signals. SKU: ADP-MIPI2RGB1 |
30,- € | ||
 |
MIPI-DSI (FFC) to MIPI-DSI (JILI30) Adapter Enables the conversion of 30pol FFC connections of the 3.5" MIPI Display from F&S to JILI30 (JAE X30HL-B). SKU: ADP-MIPI2MIPI1 |
25,- € |
Plug Connector
 |
PicoCore™ 100 pins Connector To connect PicoCore™ modules to the base board (20 pcs). SKU: B.MBU.2R100PS.3 |
30,- € |
Workshops
 |
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request | ||
|
Secure Boot as a Package Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software. SKU: WS-SBP |
500,- € | ||
Other Accessories
 |
USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € | ||
 |
SMD Steel Spacer for PicoCore™ Round SMD steel spacer/ Round Standoff Threaded M2x0.4 Steel 0.059" (1.50mm) Helps you to connect your PicoCore module to the base board. SKU: B.MSCHR.22 |
70,- € | ||
 |
Heat Spreader PicoCore100 Heat spreader for cooling PicoCore boards. SKU: MHS.PC100.1 |
10,- € |
Variants
 |
PicoCore™MX8MN-V1-LIN NXP i.MX 8M Nano ARM Cortex-A53 + Cortex-M7, 256MB RAM, 256MB Flash, Audio, MIPI-CSI Camera, Touch, MIPI-DSI, 0°C - +70°C, 3.8V Supply, Linux Buildroot/ Yocto, FreeRTOS SKU: PCoreMX8MN-V1-LIN |
Request | ||
 |
PicoCore™MX8MN-V5-LIN NXP i.MX 8M Nano ARM Cortex-A53 + Cortex-M7, 512MB RAM, 4GB eMMC, 2x Gbit Ethernet, 1x CAN, Audio, MIPI-CSI Camera, Touch, LVDS, 0°C - +70°C, 3.8V Supply, Linux Buildroot/ Yocto, FreeRTOS SKU: PCoreMX8MN-V5-LIN |
Request | ||
Starterkits
|
Starterkit PicoCore™MX8MN Linux PicoCore™MX8MN-V5-LIN, base board, display, cable kit, access data to documentation and Software SKU: PCoreMX8MN-SKIT-LIN |
360,- € |
Yocto
| Architecture | Type | Release Name | Bootloader | Kernel | OS | Help File | Software | VM |
|---|---|---|---|---|---|---|---|---|
| FSIMX8MN | Yocto | fsimx8mn-Y2024.02 | U-Boot 2021.04 | Linux 5.15.148 | Yocto 4.0 Kirkstone |
For i.MX8M Nano, F&S has adapted Yocto. In addition, F&S provide a BSP for FreeRTOS. This FreeRTOS BSP makes it easier to use features of Cortex-M7.
Yocto has established itself as the standard for Linux build environments in recent years. Our standard configuration, which is intended to give a first impression of the module's functionality, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, X11R7, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and much more.
F&S also offers a virtual machine (based on VirtualBox) with an installed Linux based on the Fedora distribution for free download. All packages necessary to translate our software are already installed. All services (NFS, TFTP) for working with our boards are also installed. Our BSP is unpacked and precompiled in the right directories. With this virtual machine it doesn't matter whether you use Windows or Linux as the host. Simply download the VHD, import it into VirtualBox and development can begin immediately.
FreeRTOS
In addition to the 4 Cortex-A53 cores, the NXP i.MX8M Nano CPU also has a Cortex-M7 core. The Cortex-M7 core is particularly suitable for real-time tasks or for power saving.
F&S offers a completely tested BSP for the use of the Cortex-M7 for FreeRTOS or Bare Metal application.
