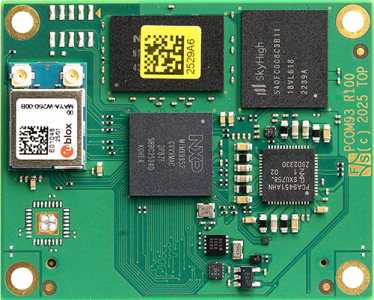

PicoCOM93-V3I-LIN
Computer On Module mit NXP i.MX 93 SoC
|
The new PicoCOM93 based on the NXP i.MX93 provides a modern Linux-based platform with an integrated EdgeLock Secure Enclave and ample memory for A/B updates. This makes it ideally prepared for the requirements of the Cyber Resilience Act (CRA) and for the transition from Windows CE to Linux or Windows 11 IoT. |
|
| PicoCOM93-V3I-LIN | ||
| State | Samples | |
| CPU | ||
| CPU | NXP i.MX 93 | |
| Core | ARM Cortex-A55 Cortex-M33 NPU |
|
| No of Cores | 2x A55 + M33 | |
| Frequency | 1.7GHz + 250MHz | |
| L2-Cache | 2x64kB L2 + 256kB L3 | |
| NPU | 0.5 TOPS | |
| GPU | PXP | |
| Security | ||
| Secure Element | Edgelock Secure Enclave | |
| Operating System | ||
| Linux | Yocto (uboot installed) |
|
| Memory | ||
| Flash | 64k EEPROM | |
| eMMC | 8GB | |
| RAM | 1GB LPDDR4 x16 |
|
| Interfaces | ||
| SD-Card | 1x SDIO | |
| Ethernet | 1x 10/100MB | |
| USB Host | 1x | |
| USB Device | 1x | |
| CAN | 1x CAN-FD | |
| UART | 3x | |
| I2C | 2x | |
| SPI | 1x | |
| Audio | Line In/Out opt. I2S |
|
| Digital I/O | ✓ | |
| Touch Panel | TSC2004 | |
| RTC | PCF85263ATL | |
| Display | ||
| RGB | 18 Bit | |
| Common | ||
| V_IN | +3,3V DC/ ±5% | |
| T_AMB | 0°C - +70°C | |
| Size | 40x50mm | |
| Availability | 2038+ |
 |
Starterkit PicoCOM93 Linux PicoCOM93, Carrier board, 7" Display mit Touch, Kabelkit SKU: PCOM93-SKIT-LIN |
299,- € |
Software
 |
Secure Boot as a Service The SBS (Secure Boot as a Service) includes the signing (protection against manipulation) and if necessary encryption (protection of intellectual property) by F&S Elektronik Systeme. SKU: Linux-SBS |
500,- € | ||
|
Display Customization (RGB or LVDS display under Linux) Creation of a DeviceTree (Buildroot or Yocto) for your F&S Board. The DeviceTree contains the appropriate entries for your display. SKU: EW-SW |
700,- € |
Displays and Displaykits
 |
7" RGB Display with resistive Touch 7" TFT (800x480) EDT ET070080DH6 SKU: B.LCD.15 |
120,- € | ||
 |
7" RGB Display with PCAP Touch 7" TFT (800x480) Display Endrich MI0700AJT-54CP with capacitive Touch SKU: B.LCD.18 |
150,- € | ||
 |
Displaykit RGB 7" WVGA display with RGB interface and touch panel, as well as the fitting connection cable (40pol film cable), display adapter and touch cable SKU: NDCU-ADP/TFT-KIT |
170,- € | ||
|
Displaykit RGB 2 7" WVGA Display with RGB interface and touch panel, connection cable (40pol film cable), display adapter and touch cable SKU: aSt-RGBKIT |
170,- € | ||
 |
Displaykit 7" RGB - PCAP Touch 7" Display with RGB interface and capacitive touch panel, connection cable (50pol film cable) and display adapter. SKU: KIT-TFT-7RGB |
210,- € |
Touch kits
 |
Resistive Touch Kit 2 For the connection of a resistive touch panel to boards with 6pol Hirose socket. SKU: SINTF-ADP-RTI2C |
Request | ||
 |
PCAP Touch Kit for EDT Kit to connect an EDT PCAP touch panel SKU: ADP-EDTTOUCH2 |
35,- € | ||
Cable
 |
Capacitive Touch Cable 6-pin cable with matching connector for connecting an I2C touch to F&S boards SKU: B.MKAB.47 |
10,- € |
Adapters
 |
I2C Erweiterung Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus. SKU: NDCU-ADP/I2C |
80,- € | ||
 |
NetDCU/ PicoCOM DVI Adapter Connects NetDCUA5/ PicoCOMA5/ A9X to a DVI/ HDMI screen. SKU: ADP-RGB2DVI |
50,- € |
Workshops
 |
Secure Boot as a Package Secure Boot as a Package contains a workshop, where you learn how to realize the topic Secure Boot. You will also receive a user Tool Software. SKU: WS-SBP |
500,- € | ||
|
Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1 |
Request | ||
Other Accessories
 |
USB Stick USB Memory Stick with memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1 |
20,- € |
Software
| Architecture | Type | Release Name | Bootloader | Kernel | OS | Help File | Software | VM |
|---|---|---|---|---|---|---|---|---|
| FSIMX93 | Yocto | fsimx93-Y2025.08 | U-Boot 2024.04 | Linux 6.6.101 | Yocto 5.0.11 Scarthgap |
Yocto
For the CPU NXP i.MX93 F&S offers a Yocto based environment. In addition, F&S provide a BSP for FreeRTOS. This FreeRTOS BSP makes it easier to use features of Cortex-M33.
Yocto has established itself as the standard for Linux build environments in recent years. Our standard configuration, which is intended to give a first impression of the module's functionality, includes the following features: Busybox, gdb, alsa-utils, gstreamer, fbv, X11R7, matchbox, feh, openssl, openssh, ncurses, can-utils, iproute2, ftpd, httpd, telnet, tftp, and much more.
F&S also offers a virtual machine (based on VirtualBox) with an installed Linux based on the Fedora distribution for free download. All packages necessary to translate our software are already installed. All services (NFS, TFTP) for working with our boards are also installed. Our BSP is unpacked and precompiled in the right directories. With this virtual machine it doesn't matter whether you use Windows or Linux as the host. Simply download the VHD, import it into VirtualBox and development can begin immediately.
FreeRTOS
In addition to the 2 Cortex-A55 cores, the NXP i.MX 93 SoC also has a Cortex-M33 core. The Cortex-M33 core is particularly suitable for real-time tasks or for power saving.
F&S offers a completely tested BSP for the use of the Cortex-M33 for FreeRTOS or Bare Metal application.
Windows 10/11 IoT Enterprise
Long-term Operating System Support
A key feature of Windows IoT Enterprise is its long-term operating system support (LTSC). This version offers optional support for up to 10 years, ensuring a stable and reliable platform for your devices.
Extensive Ecosystem
With Windows IoT Enterprise, you can access thousands of existing apps and leverage a vast ecosystem. Use your existing C# .Net applications and continue to develop them.
Future Enhancements
Future versions of Windows IoT Enterprise will support GPU acceleration for Chrome/Edge, WPF applications, and video playback optimizations.
Security and Protection
Take advantage of enterprise-grade device management tools to keep your devices up to date and running reliably. Features such as Secure Boot and over-the-air updates are integrated to protect your devices and ensure they are always up to date.
Multi-Cloud Connectivity
Windows IoT Enterprise enables multi-cloud connectivity, allowing seamless integration and management of your devices across various cloud environments.
Contact Us
|
For more information on the features and availability of Windows IoT Enterprise on F&S modules, please check our support forum or feel free to contact us. |
 |
