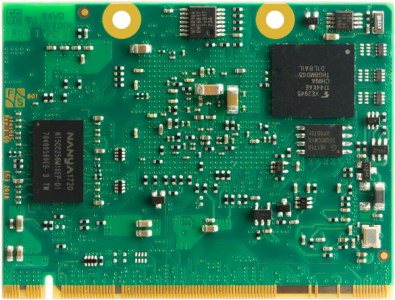

efus™G1C

Computer On Module with Renesas RZ/G1C Processor

For the start of development, we recommend:

	efus™G1C
State	Samples
CPU
CPU	Renesas RZ/G1C
Core	ARM Cortex-A7
No of Cores	2
Frequency	max. 1GHz
GPU	2D, 3D
Operating System
Linux	Yocto
Memory
Flash	max. 1MB QSPI min. 4GB eMMC
RAM	max. 1GB
Interfaces
SD-Card	1x extern
Ethernet	1x 100/1000Mb
WiFi	IEEE802.11b/g/n/ac*
BT	BT 2.1 + EDR, 4.0/4.1 with antenna socket opt. chip antenna
USB Host	1x
USB Device	1x
CAN	1x
UART	4x
I2C	2x
SPI	2x
Audio	I2S
Touch Panel	analog resistive and PCAP Touch ext. via I2C
Camera analog/digital	1/-
RTC	on board/ external IC
additional Interfaces	analog Video Out
Display
LVDS	24 Bit
Common
Supply Voltage	+5VDC/ ±5%
Power Consumption	3W typ.
Operating Temperature	0°C - +70°C opt. -20°C - +85°C
Size	47x62.1x11mm (LxBxH)
Weight	~15g
Long Term Availability	2028

	efus™G1C-V2-LIN
State	Samples
CPU
CPU	Renesas RZ/G1C
Core	ARM Cortex-A7
No of Cores	2
Frequency	1GHz
GPU	2D, 3D
Operating System
Linux	Yocto
Memory
Flash	1MB QSPI min. 4GB eMMC
RAM	1GB
Interfaces
SD-Card	1x extern
Ethernet	1x 100/1000Mb
WiFi	IEEE802.11b/g/n/ac*
BT	BT 2.1 + EDR, 4.0/4.1 with antenna socket opt. chip antenna
USB Host	1x
USB Device	1x
CAN	1x
UART	4x
I2C	2x
SPI	2x
Audio	I2S
Touch Panel	analog resistive and PCAP Touch ext. via I2C
Camera analog/digital	1/-
RTC	on board/ external IC
additional Interfaces	analog Video Out
Display
LVDS	24 Bit
Common
Supply Voltage	+5VDC/ ±5%
Power Consumption	3W typ.
Operating Temperature	0°C - +70°C
Size	47x62.1x11mm (LxBxH)
Weight	~15g
Long Term Availability	2028
	efus™G1C-V2-LIN

	Starterkit efus™G1C Linux efusG1C-V2-LIN, base board, cable kit, display, access data to documentation and software SKU: efusG1C-SKIT-LIN	499,- €
	Starterkit 2 efus™G1C Linux efusG1C-V2-LIN, base board, cable kit, access data to documentation and software SKU: efusG1C-SKIT2-LIN	169,- €

	USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1	20,- €
	Displaykit RGB 2 7" WVGA Display with RGB interface and touch panel, connection cable (40pol film cable), display adapter and touch cable SKU: aSt-RGBKIT	170,- €
	Resistive Touch Kit For connecting a resistive Touch panel to F&S boards with 4-poles touch connector. SKU: SINTF-ADP-RESTOUCH	35,- €
	MXM-2 Connector For connecting efus™- or QBliss-modules via goldfinger contacts. SKU: B.MST.2R230PL.1	40,- €
	7" EDT Display 7" TFT (WVGA) EDT ET070080DH6 SKU: B.LCD.15	120,- €
	40poles Film Cable Film Cable, A40pol., 0,5mm, l=200mm for displays To connect a 7" EDT Display (B.LCD.15) SKU: B.MKAB.23	10,- €
	Adapter for Endrich iSi50 Displays Adapter to connect Endrich iSi50 displays to F&S boards SKU: aSt-ADP-MIT1	50,- €
	Display Adapter Board for GLYN-EDT Adapter to connect various GLYN-EDT displays with RGB interface and resistive/ capacitive touch panel SKU: aSt-ADP-EDT2	40,- €
	Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1	Request
	efus™ Latch Allows to mount efus™ modules on the base board. SKU: B.MST.VR.5	36,- €
	Patch Antenna Patch antenna for WLAN/ BT (2.4 GHz) to connect F&S modules with WLAN/ BT antenna socket SKU: B.ANT.5	10,- €
	10.1" Display 10.1" LVDS Display SKU: UMOH-9400MD-6T	170,- €
	LVDS Cables for 7" LVDS Display LVDS Cables for 7" LVDS Display (B.LCD.19) SKU: B.MKAB.51	50,- €
	PCAP Touch Kit for EDT Kit to connect an EDT PCAP touch panel SKU: ADP-EDTTOUCH2	35,- €
	LVDS Cable LVDS cable with JAE FI X30 on one side and open ends on the other side SKU: B.MKAB.53	22,- €

Renesas works with the mainline kernel. This enables an always up-to-date Linux for this CPU/ efus™. Every two years the current kernel is set and will be maintained for many more years. The F&S Linux BSP (4.4.x, uboot, Yocto) contains the customized kernel with all interface drivers, incl. source. A cross compiler toolchain and a device tree for the creation of own bootloaders, kernel and other software is available as well.

efusG1C - Product Flyer

Deutsch (967 KB, pdf) - 22/10/2018
English (912 KB, pdf) - 22/10/2018
efus Standard (678 KB, pdf) - 30/10/2015
Customer Specific Boards (93 KB, pdf) - 20/09/2017

efusG1C - Linux

Quickstart with FS Development Machine (1 MB, pdf) - 06/05/2020

Variant

efus™G1C-V2-LIN
Renesas RZ/ G1C ARM Cortex-A7, 1GB RAM, 1MB QSPI Flash, 4GB eMMC, 1x Gb Ethernet, 1x CAN, I2S Audio, WLAN, BT, analog Camera, Touch, LVDS, 0°C - +70°C, 5V Supply, Linux Yocto
SKU: efusG1C-V2-LIN

Request

Starterkits

	Starterkit efus™G1C Linux efusG1C-V2-LIN, base board, cable kit, display, access data to documentation and software SKU: efusG1C-SKIT-LIN	499,- €
	Starterkit 2 efus™G1C Linux efusG1C-V2-LIN, base board, cable kit, access data to documentation and software SKU: efusG1C-SKIT2-LIN	169,- €

Accessories

	USB Stick USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards. SKU: USBSTICK.1	20,- €
	Displaykit RGB 2 7" WVGA Display with RGB interface and touch panel, connection cable (40pol film cable), display adapter and touch cable SKU: aSt-RGBKIT	170,- €
	Resistive Touch Kit For connecting a resistive Touch panel to F&S boards with 4-poles touch connector. SKU: SINTF-ADP-RESTOUCH	35,- €
	MXM-2 Connector For connecting efus™- or QBliss-modules via goldfinger contacts. SKU: B.MST.2R230PL.1	40,- €
	7" EDT Display 7" TFT (WVGA) EDT ET070080DH6 SKU: B.LCD.15	120,- €
	40poles Film Cable Film Cable, A40pol., 0,5mm, l=200mm for displays To connect a 7" EDT Display (B.LCD.15) SKU: B.MKAB.23	10,- €
	Adapter for Endrich iSi50 Displays Adapter to connect Endrich iSi50 displays to F&S boards SKU: aSt-ADP-MIT1	50,- €
	Display Adapter Board for GLYN-EDT Adapter to connect various GLYN-EDT displays with RGB interface and resistive/ capacitive touch panel SKU: aSt-ADP-EDT2	40,- €
	Workshops Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot SKU: NDCU-WS1	Request
	efus™ Latch Allows to mount efus™ modules on the base board. SKU: B.MST.VR.5	36,- €
	Patch Antenna Patch antenna for WLAN/ BT (2.4 GHz) to connect F&S modules with WLAN/ BT antenna socket SKU: B.ANT.5	10,- €
	10.1" Display 10.1" LVDS Display SKU: UMOH-9400MD-6T	170,- €
	LVDS Cables for 7" LVDS Display LVDS Cables for 7" LVDS Display (B.LCD.19) SKU: B.MKAB.51	50,- €
	PCAP Touch Kit for EDT Kit to connect an EDT PCAP touch panel SKU: ADP-EDTTOUCH2	35,- €
	LVDS Cable LVDS cable with JAE FI X30 on one side and open ends on the other side SKU: B.MKAB.53	22,- €

Link to the Forum

Support finden Sie jederzeit in unserem Forum.

Recent Contributions

25 Feb, 16:33	WIFI Adapter for WEC2013 PicoCOMA9X
23 Feb, 11:13	Differences in new PicoCOMA5 board rev. 1.23
18 Feb, 09:57	Using SAM-BA
17 Feb, 10:06	Hardware flow control in serial driver on efusA9X
16 Feb, 15:51	Issues with PCB Revisions prior to 1.30 for PicoCoreMX8MM-V3/-V4 and also PCB Revision prior to 1.20 for PicoCoreMX8MM-V5
12 Feb, 10:47	ActiveSync Connection to WCE6 devices
12 Feb, 06:49	Automatic date and time synchronization on PicoCOMA9X WEC2013 via Ethernet
09 Feb, 13:34	UART C on efusA9X with on board WLAN/BT
09 Feb, 10:28	PWM_A,PWM_B, PWM_C: how to control them?
09 Feb, 08:14	USB overvoltage protection

Easy, Functional..		..Universal, Small
Along with the attribute of an easy baseboard (EasyLayout), efus™ has a size of 47x62mm only and is therefore suitable for compact housings. The low power loss of only 3 Watt (typ.) makes it easy to cool the module. Processor The Renesas ARM® Cortex®-A7 CPU comes with good performance power (3800 DMIPS), low power consumption, as well as good multimedia features (3D graphics, 1080p decoder, H.264). Renesas RZ/G1C embedded processors are equipped with a 3D graphics engine (PowerVR SGX531) and support full high-definition video encoding and decoding, making them ideal for human-machine interface (HMI) applications. ➜ More Information on Renesas RZ/G1C Processors Long-Term Availability Another highlight is the long-term availability of up to ten years.		Numerous Interfaces efus™G1C comes with the following interfaces: CAN, UART, SPI, I²C, Audio, Touch Panel, Camera and Video Out. RGB and LVDS are available for display connection also. To support wireless communication, there is an optional WLAN/ BT module. The RZ/G Linux uses the Super Long Term Linux Kernel, supported by Linux Foundation‘s CIP (Civil Infrastructure Platform). Renesas delivers the basis software (3D Graphics, H.264 Video, Security, GUI and driver software), supported by the CIP Linux kernel. Renesas also offers a line-up of proven middleware for the RZ/G Linux package. The functionality of the middleware was checked by CIP, as well as by Renesas, and can be used as an easy addition to your Linux.

Easy, Functional..

..Universal, Small

Along with the attribute of an easy baseboard (EasyLayout), efus™ has a size of 47x62mm only and is therefore suitable for compact housings. The low power loss of only 3 Watt (typ.) makes it easy to cool the module.

Processor

The Renesas ARM® Cortex®-A7 CPU comes with good performance power (3800 DMIPS), low power consumption, as well as good multimedia features (3D graphics, 1080p decoder, H.264).

Renesas RZ/G1C embedded processors are equipped with a 3D graphics engine (PowerVR SGX531) and support full high-definition video encoding and decoding, making them ideal for human-machine interface (HMI) applications.

➜ More Information on Renesas RZ/G1C Processors

Long-Term Availability

Another highlight is the long-term availability of up to ten years.

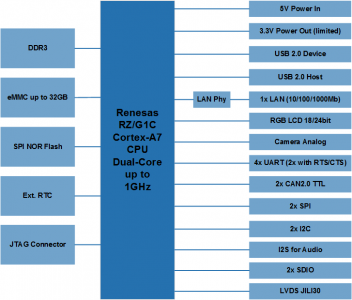

Numerous Interfaces

efus™G1C comes with the following interfaces:
CAN, UART, SPI, I²C, Audio, Touch Panel, Camera and Video Out.
RGB and LVDS are available for display connection also.
To support wireless communication, there is an optional WLAN/ BT module.

The RZ/G Linux uses the Super Long Term Linux Kernel, supported by Linux Foundation‘s CIP (Civil Infrastructure Platform).
Renesas delivers the basis software (3D Graphics, H.264 Video, Security, GUI and driver software), supported by the CIP Linux kernel. Renesas also offers a line-up of proven middleware for the RZ/G Linux package. The functionality of the middleware was checked by CIP, as well as by Renesas, and can be used as an easy addition to your Linux.
