NXP i.MX 8M Plus
Machine Learning, Vision and Advanced Multimedia
|
|
F&S offers several modules with the i.MX8M Plus:
armStoneMX8MP, efusMX8MP, PicoCoreMX8MP, OSM8MP and SMARC 8MP
 |
 |
 |
 |
|
| armStone™MX8MP | SMARC™MX8MP | efus™MX8MP | PicoCore™MX8MP | FS 8MP OSM-SF | SMARC™MX8MP | |
| State | Production | Production | Production | Production | Production | Production |
| CPU | - | - | - | - | - | - |
| CPU | NXP i.MX 8M Plus | NXP i.MX 8M Plus | NXP i.MX 8M Plus | NXP i.MX 8M Plus | NXP i.MX 8M Plus | NXP i.MX 8M Plus |
| Core | ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
| No of Cores | 4x A53 + M7 | 4x A53 + M7 | 4x A53 + M7 | 4x A53 + M7 | 4x A53 + M7 | 4x A53 + M7 |
| Frequency | max. 1.8GHz + 800MHz | max. 1.8GHz + 800MHz | max. 1.8GHz + 800MHz | max. 1.8GHz + 800MHz | max. 1.8GHz + 800MHz | max. 1.8GHz + 800MHz |
| L2-Cache | 512kB | 512kB | 512kB | 512kB | 512kB | 512kB |
| NPU | 2.3 TOPS | 2.3 TOPS | 2.3 TOPS | 2.3 TOPS | 2.3 TOPS | 2.3 TOPS |
| GPU | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 |
| VPU | Decode: 1080p60 H.265, H.264, VP9, VP8 Encode: 1080p60 H.265, H.264 |
Decode: 1080p60 H.265, H.264, VP9, VP8 Encode: 1080p60 H.265, H.264 |
Decode: 1080p60 H.265, H.264, VP9, VP8 Encode: 1080p60 H.265, H.264 |
Decode: 1080p60 H.265, H.264, VP9, VP8 Encode: 1080p60 H.265, H.264 |
Decode: 1080p60 H.265, H.264, VP9, VP8 Encode: 1080p60 H.265, H.264 |
Decode: 1080p60 H.265, H.264, VP9, VP8 Encode: 1080p60 H.265, H.264 |
| Security | - | - | - | - | - | - |
| Secure Element | SE050 | SE050 | SE050 | SE050 | - | SE050 |
| Operating System | - | - | - | - | - | - |
| Linux | Yocto (uboot installed) |
Yocto (uboot installed) |
Yocto (uboot installed) |
Yocto (uboot installed) |
Yocto (uboot installed) |
Yocto (uboot installed) |
| Windows | 10 Iot Enterprise (UEFI installed) |
10 IoT Enterprise (UEFI installed) |
- | 10 IoT Enterprise (UEFI installed) |
- | 10 IoT Enterprise (UEFI installed) |
| Real Time | FreeRTOS | FreeRTOS | FreeRTOS | FreeRTOS | FreeRTOS | FreeRTOS |
| Memory | - | - | - | - | - | - |
| RAM | max. 8GB LPDDR4 x32 |
max. 8GB LPDDR4 x32 |
max. 8GB LPDDR4 x32 |
max. 8GB LPDDR4 x32 |
max. 8GB LPDDR4 x32 |
max. 8GB LPDDR4 x32 |
| Flash | EEPROM | 64k EEPROM | EEPROM max. 512MB QSPI NAND |
EEPROM | 64kbit EEPROM | 64k EEPROM |
| eMMC | max. 128GB | max. 128GB | max. 64GB | max. 128GB | max. 128GB | max. 128GB |
| Interfaces | - | - | - | - | - | - |
| SD-Card | 1x µSD Slot | 1x SDIO | 2x SDIO | 2x SDIO | 2x SDIO | 1x SDIO |
| Ethernet | 2x Gbit | 2x Gbit Phy | 2x 100/1000Mb | 2x 100/1000Mb opt. RGMII |
2x RGMII | 2x Gbit Phy |
| WiFi | 802.11 ac 802.11ax (r2) (2.4/ 5GHz) |
802.11 ac (2.4/ 5GHz) |
802.11 ac/a/b/g/n (2.4/ 5GHz) |
802.11 ac (2.4/ 5GHz) |
- | 802.11 ac (2.4/ 5GHz) |
| BT | 5.3 | 5.3 | 5.3 | 5.3 | - | 5.3 |
| USB Host | 4x 2.0 | 1x 3.0 + 3x 2.0 | 1x OTG 3.0 | 1x 3.0 | 1x OTG 3.0 | 1x 3.0 + 3x 2.0 |
| USB Device | 1x Type-C (OTG 3.0) | 1x OTG 2.0 | 1x OTG 3.0 | 1x OTG 3.0 | 1x OTG 2.0 | 1x OTG 2.0 |
| CAN | 2x CAN-FD | 2x CAN-FD | 2x CAN-FD | max. 2x | 2x CAN-FD | 2x CAN-FD |
| UART | 3x | 4x | 4x | max. 4x | 4x | 4x |
| I2C | 4x | 5x | 2x | max. 4x | 3x | 5x |
| SPI | 2x | 2x | 2x | max. 2x | 2x | 2x |
| Audio | IN/ OUT/ MIC/ Headphone opt. I2S |
2x I2S | I2S | Line In/ Out/ Mic/ Headphone opt. I2S |
2x I2S | 2x I2S |
| Digital I/O | max. 32 | 24 GPIO_A/_B/_C |
||||
| ADC | 4x | - | 4x | - | - | - |
| Touch Panel | via I2C or USB | via I2C or USB | via I2C or USB | via I2C or USB | via I2C or USB | via I2C or USB |
| Camera | MIPI-CSI (4 lanes) |
2x MIPI-CSI (1x 4 lanes), (1x 2 lanes) |
1x MIPI-CSI (4 lanes) |
2x MIPI-CSI (4 lanes) |
MIPI CSI (4 lanes) |
2x MIPI-CSI (1x 4 lanes), (1x 2 lanes) |
| PCIe | 1x (SIM Card Slot) | 1x PCIe 3.0 (1 lane) |
1x PCIe 3.0 (1 lane) |
1x PCIe 3.0 (1 lane) |
1x PCIe 3.0 (1 lane) |
1x PCIe 3.0 (1 lane) |
| RTC | PCF85263ATL | PCF85263ATL | PCF85263ATL | PCF85263ATL | PCF85263ATL | PCF85263ATL |
| More | RS485, 4x PWM | - | - | max. 4x PWM, SPDIF, ESAI, SAI, SSI | 3x PWM, BL-PWM | - |
| Display | - | - | - | - | - | - |
| RGB | - | - | 18 Bit | - | - | - |
| LVDS | 2x 4 lanes | 2x 4 lanes | 2x 4 lanes | 2x 4 lanes | 1x 4 lanes | 2x 4 lanes |
| CRT/DVI | DVI | DVI | DVI | DVI | DVI | DVI |
| MIPI-DSI | 1x 4 lanes | 1x 4 lanes | 1x 4 lanes | 1x 4 lanes | 1x 4 lanes | 1x 4 lanes |
| Common | - | - | - | - | - | - |
| V_IN | 5V DC / ±5% opt. 24V DC |
5V DC/±5% | +5VDC/ ±5% | +4.5V - 5.5VDC | 5V DC/±5% | 5V DC/±5% |
| T_AMB | 0°C - +70°C -25°C - +70°C |
0°C - +70°C -25°C - + 85°C -40°C - + 85°C |
0°C - +70°C -25°C - +70°C -40°C - +70°C |
0°C - +70°C -25°C - +85°C -40°C - +85°C |
0°C - +70°C -25°C - +85°C -40°C - +85°C |
0°C - +70°C -25°C - + 85°C -40°C - + 85°C |
| Size | 100x72x15mm | 82x50mm | 47x62.1x11mm | 35x40mm | 30x30mm | 82x50mm |
| Availability | 2036+ | 2036+ | 2036+ | 2036+ | 2036+ | 2036+ |
| armStone™MX8MP | SMARC™MX8MP | efus™MX8MP | PicoCore™MX8MP | FS 8MP OSM-SF | SMARC™MX8MP |
FS Solutions
- armStoneMX8MP (366 KB, pdf) - 13/02/2024
- efusMX8MP (484 KB, pdf) - 13/02/2024
- FS 8MP OSM-SF (764 KB, pdf) - 29/07/2025
- PicoCoreMX8MP (526 KB, pdf) - 01/05/2024
- SMARC 8MP (642 KB, pdf) - 05/08/2025
- NXP i.MX 8ULP - (external link)
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Linux - fsimx8mp
- Linux First Steps (7.2 MB, pdf) - 26/09/2025
- Linux on F&S Boards (10 MB, pdf) - 29/05/2026
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Extensive product documentation is provided alongside each product.
The NXP i.MX 8M Plus is a significant performance upgrade over the widely used i.MX 6 family. While the i.MX 6 has been a proven platform for embedded HMI and industrial applications for many years, the i.MX 8M Plus adds higher CPU performance with four Arm® Cortex®-A53 cores, a dedicated Cortex®-M7 real-time processor, advanced multimedia capabilities, and an integrated 2.3 TOPS Neural Processing Unit (NPU) for AI and machine vision workloads. Combined with modern connectivity options, enhanced graphics performance, and long-term software support, the i.MX 8M Plus provides a future-ready platform for next-generation industrial automation, Edge AI, HMI, and IoT solutions.

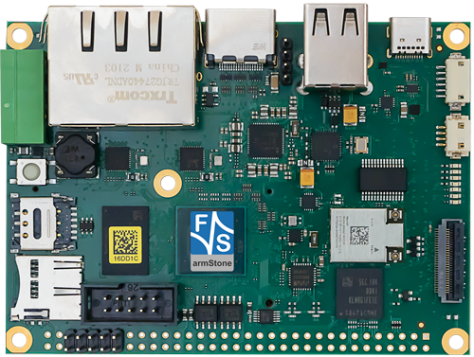

armStoneMX8MP
 |
Starterkit armStone™MX8MPr2 Linux Starterkit with armStone™MX8MPr2-V4I-LIN, cable kit, antenna, power adapter, access data to documentation and software SKU: AS8MPr2-SKIT-LIN |
360,- € | ||
|
Starterkit armStone™MX8MP Windows Starterkit with armStone™MX8MP-V5-LIN, cable kit, power adapter, access data to documentation and software SKU: aStoneMX8MP-SKIT-W |
360,- € |

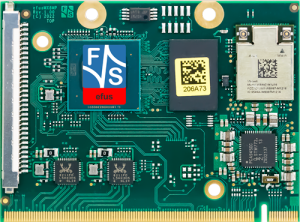

efusMX8MP
 |
Starter Kit efus™MX8MP Linux Evaluation kit for efus™MX8MP with efus™ module, carrier board, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: efusMX8MP-SKIT-LIN |
360,- € |
PicoCoreMX8MP
 |
Starterkit PicoCore™MX8MP Linux NXP i.MX 8MP Evaluation Board PCoreMX8MPr2-V4I-LIN, baseboard, display, cable kit, access data to documentation and software SKU: PCoreMX8MP-SKIT-LIN |
360,- € | ||
|
Starterkit PicoCore™MX8MP Windows 10 IoT NXP i.MX8M Plus with Windows 10 IoT evaluation kit. Includes carrier board, 7" LVDS PCAP display and access to software and documentation. SKU: PCoreMX8MP-SKIT-W |
360,- € |
FS 8MP OSM-SF
 |
Starter Kit FS 8MP OSM-SF Linux Evaluation kit for FS 8MP OSM-SF with base board, OSM-Adapter, cable kit, 7" LVDS display, heat spreader and access data to documentation and software. SKU: OSM8MP-SKIT-LIN |
360,- € |
SMARC 8MP
 |
Starterkit SMARC™MX8MP Linux Evaluation kit für FS SMARC™MX8MP with base board, 7" display with PCAP touch, cable kit, access data for documentation and software SKU: FSSM8MP-SKIT-LIN |
360,- € |
| Architecture | Type | Release Name | NBoot | Bootloader | UEFI | Kernel | OS | Help File | Software | VM |
|---|---|---|---|---|---|---|---|---|---|---|
| FSIMX8MP | Yocto | fsimx8mp-Y2025.12 | U-Boot 2024.04 | Linux 6.6.112 | Yocto 5.0.14 Scarthgap |
|
||||
| FSIMX8MP | Windows | iMX8MP_W10_V120 | nboot-fsimx8mp-iot-2024.06.1 | U-Boot uboot-fsimx8mp-iot-2024.08 | uefiIMX8MP_X_12 | 1.2 | Windows 10 Iot LTSC 2021 |
|
||
| FSIMX8MP | FreeRTOS | fsimx8mp-V2024.09 | sdk-2.15.0 |
|
||||||
| FSIMX8MP | Yocto | fsimx8mp-Y2024.07.2 | U-Boot v2021.04-fs1.3 | Linux v5.15.197-2.2.0-fs1.0 | Yocto 4.0.32 Kirkstone |
