SMARC™
- SMARC™ 2.2 standard, 50 x 82 mm
- MXM3 goldfinger connector
- Power supply: 5V
- 3.3V I/O voltage
- Standardized interfaces
- F&S cooling solution
- Scalable:
NXP i.MX 8M Plus, NXP i.MX 95 - Free development support including schematic review
- Comprehensive software support
What are the advantages of F&S SMARC modules?
- Quality products designed and manufactured in Germany
- Designed and manufactured according to ISO 13485 (e.g. for medical applications)
- Long-term availability and professional lifecycle management
- Custom assembly options and flexible module variants
- Comprehensive ecosystem with carrier boards, BSPs, and documentation
- Price stability and an excellent price-performance ratio
F&S SMARC or F&S PicoCore – Which module suits your project?
F&S SMARC – When standardization and x86 compatibility are required
- SMARC is a widely adopted industry standard for computer modules, defined by the SGeT consortium.
- Supports both ARM and x86/64 processors including their typical interface requirements
- Thanks to its form factor (82 × 50 mm or 82 × 80 mm), there is sufficient space for high-performance Intel or AMD processors
- Ideal for customers looking for standardization, scalability, and second source options
- Broad market availability ensures maximum flexibility for carrier board development
F&S PicoCore – Compact, scalable, ARM only
- PicoCore is a compact, proprietary form factor from F&S – designed for space-saving and efficient embedded solutions
- Optimized exclusively for ARM architectures – ideal for low-power applications
- Extensive model variety across multiple CPU generations
- Extremely compact at just 35 × 40 mm – perfect for small devices with limited installation space
- Ideal for customers who need an optimized, long-term, and streamlined solution without the overhead of standardization

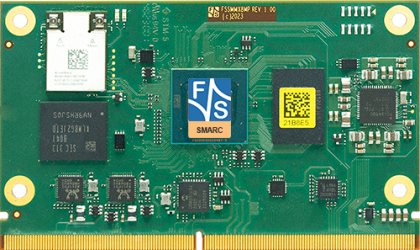

| SMARC™MX8MP | SMARC™MX95 | |
| State | Production | Q2/2026 |
| CPU | - | - |
| CPU | NXP i.MX 8M Plus | NXP i.MX 95 |
| Core | ARM Cortex-A53 Cortex-M7 HiFi-4 DSP, NPU, ISP |
ARM Cortex-A55 Cortex-M7 Cortex-M33 NPU, ISP |
| No of Cores | 4x A53 + M7 | 6x A55 + M7 |
| Frequency | max. 1.8GHz + 800MHz | max. 2.0GHz |
| L2-Cache | 512kB | 2x/4x/6x 64kB L2 + 512kB L3 |
| NPU | 2.3 TOPS | 2 TOPs eIQ® Neutron |
| GPU | 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 | 3D ARM Mali G310, 2D |
| VPU | 1080p60, h.265/4, VP9, VP8 Video Encode: 1080p60, h.265/4 |
Encode / Decode 4Kp60, H.265, H.264 |
| Security | - | - |
| Secure Element | SE050 | SE050, SLB9673, Edgelock Secure Enclave |
| Operating System | - | - |
| Linux | Yocto (uboot installed) |
YOCTO (uboot installed) |
| Windows | 10 IoT Enterprise (UEFI installed) |
- |
| Real Time | FreeRTOS | - |
| Memory | - | - |
| Flash | 64k EEPROM | 64k EEPROM |
| eMMC | max. 64GB | max. 64GB |
| RAM | max. 8GB LPDDR4 x32 |
max. 8GB LPDDR4x x32 |
| Interfaces | - | - |
| SD-Card | 1x SDIO | 1x SDIO |
| Ethernet | 2x 100/1000 Mbit | 2x 100/1000 Mbit |
| WiFi | 802.11 ac/a/b/g/n (2.4/ 5GHz) |
IEEE 802.11 a/b/g/n/ac |
| BT | 5.3 | - |
| USB Host | 1x 3.0 + 3x 2.0 | 1x 3.0 + 3x 2.0 |
| USB Device | 1x OTG 2.0 | 1x OTG 2.0 |
| CAN | 2x CAN-FD | 2x CAN-FD |
| UART | 4x | 4x |
| I2C | 5x | 5x |
| SPI | 2x | 2x |
| Audio | 2x I2S | 2x I2S |
| Digital I/O | ||
| Touch Panel | via I2C or USB | via I2C or USB |
| Camera | 2x MIPI-CSI (1x 4 lanes), (1x 2 lanes) |
1-2x MIPI-CSI (1x 4 lanes), (1x 2 lanes) |
| PCIe | 1x PCIe 3.0 (1 lane) |
1x PCIe 3.0 (1 lane) |
| RTC | PCF85263ATL | PCF85263ATL |
| More | - | 2x ADC IN, 1x TAMPER |
| Display | - | - |
| LVDS | 2x 4 lanes | 2x 4 lanes |
| CRT/DVI | DVI | eDP (4k) |
| MIPI-DSI | 1x 4 lanes | - |
| Common | - | - |
| Supply Voltage | 5V DC/±5% | 5V DC/±5% |
| Power Consumption | 4 Watt | 4 Watt |
| Operating Temperature | 0°C - +70°C -25°C - + 85°C -40°C - + 85°C |
0°C - +70°C -25°C - + 85°C -40°C - + 85°C |
| Size | 82x50mm | 82x50mm |
| Weight | ~20g | ~20g |
| Availability | 2036+ | 2039+ |
| SMARC™MX8MP | SMARC™MX95 |
FS SMARC
- SMARC Cooling Solution (359 KB, pdf) - 22/07/2024
- SGeT SMARC standard - (external link)
Usage
By downloading you accept our general terms and conditions.
FS SMARC - Quick Facts
- FSSM8MP (642 KB, pdf) - 05/08/2025
- FSSM95 (556 KB, pdf) - 22/04/2025
Usage
By downloading you accept our general terms and conditions.
Usage
By downloading you accept our general terms and conditions.
Extensive product documentation is provided alongside each product.
 |
Starterkit SMARC™MX8MP Linux Evaluation kit für FS SMARC™MX8MP with base board, 7" display with PCAP touch, cable kit, access data for documentation and software SKU: FSSM8MP-SKIT-LIN |
360,- € |
| Architecture | Type | Release Name | NBoot | Bootloader | UEFI | Kernel | OS | Help File | Software | VM |
|---|---|---|---|---|---|---|---|---|---|---|
| FSIMX8MP | Windows | iMX8MP_W10_V120 | nboot-fsimx8mp-iot-2024.06.1 | U-Boot uboot-fsimx8mp-iot-2024.08 | uefiIMX8MP_X_12 | 1.2 | Windows 10 Iot LTSC 2021 |
|
||
| FSIMX8MP | FreeRTOS | fsimx8mp-V2024.09 | sdk-2.15.0 |
|
||||||
| FSIMX8MP | Yocto | osm8mp-Y2025.04 | U-Boot 2021.04 | Linux 5.15.160 | Yocto 4.0.20 Kirkstone | |||||
| FSIMX8MP | Yocto | fsimx8mp-Y2024.07 | U-Boot 2021.04 | Linux 5.15.160 | Yocto 4.0 Kirkstone |
Keine Software für SMARC™MX95 gefunden.
