efus™

Highly integrated SoM for easy carrier board design

  • 47x62mm
  • Single power supply 5V
  • 3.3V I/O voltage
  • Display Interfaces: RGB / LVDS / DVI (HDMI)
  • MXM2 Goldfinger Connector 230 Pins, 0,5mm
  • Camera, PCIe, SATA, WLAN/BT module
  • 1x / 2x LAN Phy
  • NXP i.MX 6ULL, NXP i.MX 6, NXP i.MX 6SoloX
    NXP i.MX 8X
    NXP i.MX 8M PLUS
    NXP i.MX 93, NXP i.MX 91

efus – Easy. Functional. Universal. Scalable.

With over 20 years of project experience, we know that carrier board costs and development costs are a critical factor in embedded development. That’s why we introduced efus, which ensures cost-effective and layout-friendly base board design.

The key advantages of the efus standard are:

  • Easy to integrate: Optimized pinout and MXM-2 connector for simplified carrier board routing

  • Functional: Rich set of interfaces for flexible application needs

  • Universal: Suitable for a wide range of embedded use cases

  • Scalable: Adaptable performance and memory options for various requirements

Additional highlights:

  • Compact form factor (47x62mm) for space-saving designs

  • Standardized MXM-2 connector ensures reliable integration

  • Designed for industrial, medical, and HMI environments

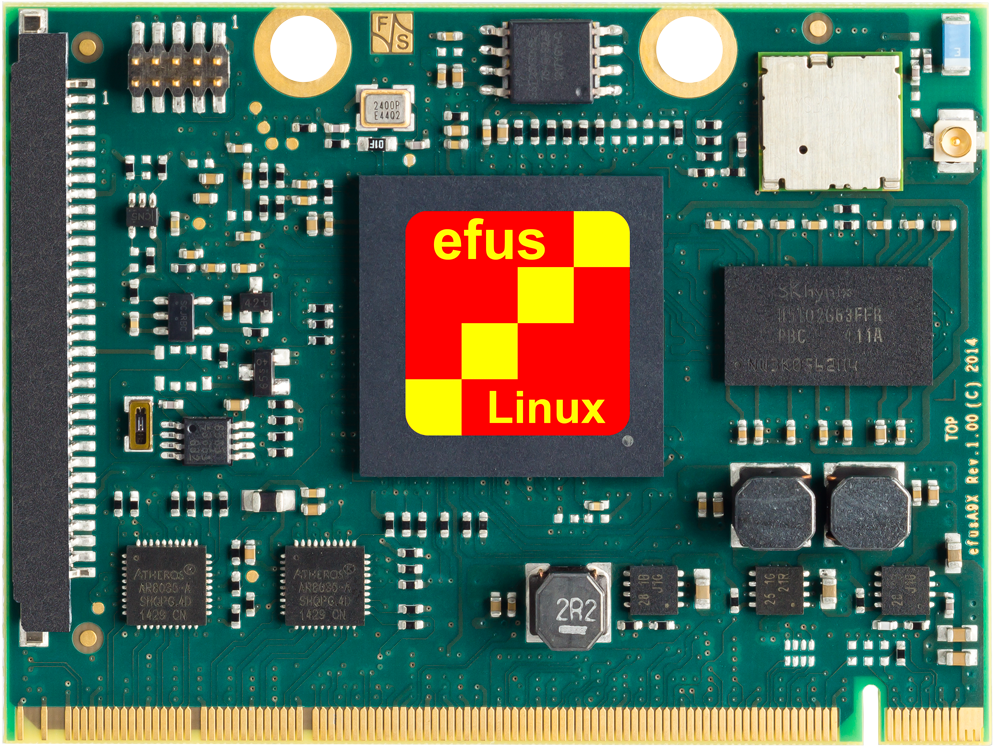

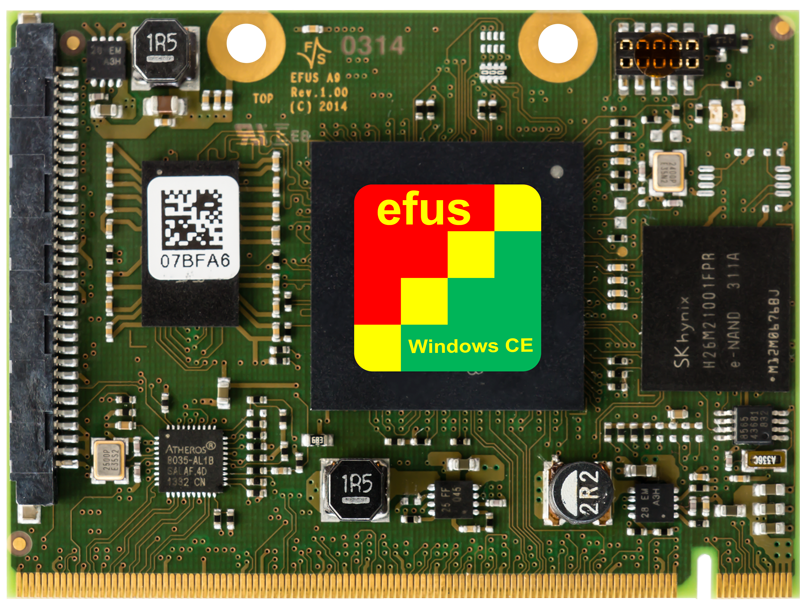

efus™A7UL efus™A9 efus™A9X efus™MX8X efus™MX8MP efus™MX93
State Production Production Production Production Production Samples
CPU - - - - - -
CPU NXP i.MX 6UL/ULL NXP i.MX 6 NXP i.MX 6SoloX NXP i.MX 8DualX/ QuadXPlus NXP i.MX 8M Plus NXP i.MX 93
Core ARM Cortex-A7 ARM Cortex-A9 ARM Cortex-A9
Cortex-M4		 ARM Cortex-A35
Cortex-M4		 ARM Cortex-A53
Cortex-M7
HiFi-4 DSP, NPU, ISP		 ARM Cortex-A55
Cortex-M33
NPU
No of Cores 1 1,2,4 1x A9 + M4 2x, 4x A35 +M4F 4x A53 + M7 2x A55 + M33 + NPU
Frequency max. 900MHz max. 1GHz max. 1GHz + 200MHz 1.2GHz max. 1.8GHz + 800MHz 1.7GHz + 250MHz
L2-Cache 128KB max. 1MB 256KB 512KB (ECC) 512KB 2x64kB L2 + 256kB L3
NPU - - - - 2.3 TOPS 0.5 TOPS
GPU - 2D, 3D 2D, 3D 2D, 3D (GC7000 Lite, 4 shader) 2D, 3D: ES 3.1/3.0, CL™ 1.2, VG™ 1.1 PXP
VPU - 1080p60 - 4Kp30 1080p60, h.265/4, VP9, VP8,
Video Encode: 1080p60, h.265/4		 -
Operating System - - - - - -
Android - - Lollipop 5.1.1 - - -
Linux Buildroot
Yocto
(uboot installed)		 Buildroot
Yocto
(uboot installed)		 Buildroot
Yocto
(uboot installed)		 Buildroot
Yocto
(uboot installed)		 Yocto
(uboot installed)		 Yocto
(uboot installed)
Windows WEC 2013
(EBoot installed)		 WEC 7
WEC 2013
(EBoot installed)		 WEC 2013
(EBoot installed)		 - - 11 IoT Enterprise
(UEFI installed)
Real Time - - FreeRTOS FreeRTOS FreeRTOS FreeRTOS
Memory - - - - - -
Flash max. 512MB SLC NAND max. 512MB
opt. SPI NOR
opt. I2C EEPROM		 max. 512MB SLC NAND max. 512MB SLC NAND
1MB QSPI NOR
EEPROM		 EEPROM
max. 512MB QSPI NAND		 EEPROM
eMMC max. 64GB max. 64GB max. 64GB max. 64GB max. 64GB max. 64GB
RAM max. 1GB max. 2GB max. 2GB 2GB LPDDR4 x32 max. 8GB LPDDR4 max. 2GB LPDDR4
x16
Interfaces - - - - - -
SD-Card 2x SDIO 2x SDIO 2x SDIO 2x SDIO max. 2x SDIO max. 2x SDIO
Ethernet 2x 10/100Mb 100/1000Mb 2x 100/1000Mb 2x 100/1000Mb (IEEE 1588, AVB) 2x 100/1000Mb max. 2x 100/1000Mb
WiFi IEEE802.11 b/g/n/ac* - IEEE 802.11 b/g/n/ac* 802.11 ac/a/b/g/n
(2.4/ 5GHz)		 802.11 ac/a/b/g/n
(2.4/ 5GHz)		 802.11 ac/a/b/g/n
(2.4/ 5GHz)
BT BT 2.1 + EDR, 4.x LE
mit Antennenbuchse
opt. Chipantenne		 - BT 2.1 + EDR, 4.x LE
mit Antennenbuchse
opt. Chipantenne		 5.3 5.3 5.3
USB Host 1x 1x 1x 1x USB 2.0 OTG 1x USB 3.0 OTG 1x USB 2.0 OTG
USB Device 1x 1x 1x 1x USB 3.0 OTG 1x USB 3.0 OTG 1x USB 2.0 OTG
CAN 2x 2x 2x 2x CAN-FD 2x CAN-FD 2x CAN-FD
UART 6x 4x 4x 4x 4x 8x
I2C 4x 2x 2x 4x 2x 4x
SPI 4x 2x 2x 2x 2x 2x
Audio I2S I2S I2S I2S I2S I2S
ADC - 1x - - 4x 4x
Touch Panel via I2C or USB via I2C or USB via I2C or USB via I2C or USB via I2C or USB via I2C or USB
Camera 0/parallel 8bit 0/MIPI-CSI or Parallel 8bit 1/Parallel 8bit MIPI-CSI
(4 lanes)		 MIPI-CSI2
(4 lanes)		 MIPI-CSI
(2 lanes)
PCIe - 1x 1x 1x PCIe 3.0 (1 lane) 1x PCIe 3.0 (1 lane) -
SATA - 1x - PCF85263 - -
RTC on board/ extern IC on board/ extern IC on board/ extern IC on board/ extern IC PCF85263ATL PCF85263ATL
Display - - - - - -
RGB 18/24bit 18bit 18bit - 18 Bit 18 Bit
LVDS opt. 18bit LVDS über MXM2 2x 24bit 1x 24bit
opt. 1x 18bit LVDS über MXM2		 2x 4 lanes
(max.1080p)		 2x 24bit
(8 lanes) (max.1080p)		 1x 4 Lanes
CRT/DVI - 0/DVI - - -/FullHD -
MIPI-DSI - - - 2x 4 lanes
(max. 2x1080p)		 1x 4 lanes -
Common - - - - - -
Supply Voltage +5VDC/ ±5% +5VDC/ ±5% +5VDC/ ±5% +5VDC/ ±5% +5VDC/ ±5% +5VDC/ ±5%
Power Consumption 1-2W typ. 2-4W typ. 2W typ. 3W typ. 3W typ. 3W typ.
Operating Temperature 0°C - +70°C
-20°C - +70°C
-40°C - +85°C		 0°C - +70°C
-20°C - +85°C		 0°C - +70°C
-20°C - +85°C		 0°C - +70°C
-25°C - +85°C
-40°C - +85°C		 0°C - +70°C
-25°C - +70°C
-40°C - +70°C		 0°C - +70°C
-25°C - +85°C
-40°C - +85°C
Size 47x62.1x11mm 47x62.1x11mm 47x62.1x11mm 47x62.1x11mm 47x62.1x11mm 47x62.1x11mm
Weight ~15g ~15g ~15g ~15g ~15g ~15g
Long Term Availability 2035 2035 2035 2035 2036 2038
efus™A7UL efus™A9 efus™A9X efus™MX8X efus™MX8MP efus™MX93

efus

efus - Quick Facts

Extensive product documentation is provided alongside each product.

efusMX8X Starterkit OBLIQUE TOP 750px Starterkit efusMX93 Linux
Evaluation kit for efus™MX93 with efus™ module, carrier board, cable kit, 7" LVDS display, heat spreader and access data to documentation and software.
SKU: efusMX93-SKIT-LIN		 360,- €


efusMX8X Starterkit OBLIQUE TOP 750px Starter Kit efus™MX8MP Linux
Evaluation kit for efus™MX8MP with efus™ module, carrier board, cable kit, 7" LVDS display, heat spreader and access data to documentation and software.
SKU: efusMX8MP-SKIT-LIN		 360,- €


efusMX8X Starterkit OBLIQUE TOP 750px Starterkit efus™MX8X Linux
efus™MX8X-V4-LIN, base board, display, cable kit, access data to documentation and software
SKU: efusMX8X-SKIT-LIN		 360,- €
