Starterkit NetDCUA5 Windows



Starterkit NetDCUA5 Windows
  400,- €
Tax not included

NetDCUA5-V1-W13, base board, cable kit, 7“ EDT RGB TFT with resistive touch incl. adapter and cables, access data to documentation and software

The starterkit offers you the possibility to connect an external periphery with NetDCUA5 during the phase of development. NetDCUA5 is a plug-in module and has all signals on 2.54mm hole rows.
The kit contains a base board which leads out all NetDCUA5 interfaces on common sockets or pin strips.

The NetDCUA5 starterkit contains a NetDCUA5-V1-W13 with Cortex-A5 CPU, 256MB RAM, 128MB Flash, Audio, Ethernet, CAN and resistive touch controller. Bootloader and a WEC 2013 kernel are pre-installed. For testing purposes one can also install a different operating system from the pre-installed one and develop software for NetDCUA5. The available alternatives are WCE 6.0 R3 and WEC 7.

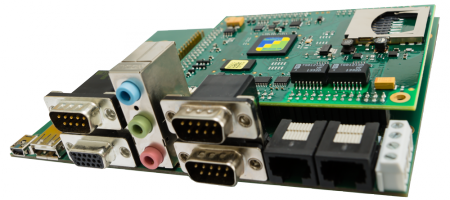

The starterkit consists of a base board with a plugged-on NetDCUA5 and a cable kit. The base board offers connection possibilites for the following interfaces: Ethernet, USB Host, USB Device, 2x RS232, SD Card, I²C, SPI, Audio (Line In, Line Out) and I/ O-Ports. The power supply is 5V. The starterkit comes with a 7" WVGA TFT with resistive touch panel (ET070080) and fitting display adapter with film cable and touch cable. Documentation and software is available online in our download area.

Scope of Delivery

NetDCUA5 TOP Windows
NDCUA5-V1-W13
NXP Vybrid Cortex-A5, 256MB RAM, 128MB Flash, 2x Ethernet, 2x CAN, Audio, Touch, RGB, 0°C-+70°C, 5V Supply, Windows Embedded Compact 2013
SKU: NDCUA5-V1-W13

NetDCUA5 Startinterface TOP linux
NetDCU Base Board
Offers connection options for Ethernet, USB Host, USB Device, 2x RS232, SD Card, I²C, SPI, Audio (Line In, Line Out) and E/ A-Ports.
SKU: NDCU-SINTF14-FERT1

armStone efus  RGB Kit
Displaykit RGB
7" WVGA display with RGB interface and touch panel, as well as the fitting connection cable (40pol film cable), display adapter and touch cable
SKU: NDCU-ADP/TFT-KIT

starterkit cable kit
Cable Kit
USB Device Cable, Ethernet Cable, RS232 Adapter, Nullmodem Cable, Power Plug and USB Stick with access code to software and documentation (necessary to start the development).
SKU: SINTF-CABKIT

Software

software accessory Software .NET Drivers
Driver package for retrofitting, consists of C# drivers for I²C/ SPI/ CAN, as well as the SPI driver in C++.
SKU: WCE-DOTNET
500,- €

software accessory UpDate Software
This program package allows a safe and easy update of the application program and the operating system via USB Stick or SD Card.
SKU: WCE-UPDATE
500,- €

software accessory Boot Screen
Shows the device's user a starting procedure while booting (BMP File).
SKU: WCE-BOOTSCREEN
500,- €

software accessory Custom Kernel
Creation of a customer-specific kernel. Windows CE components are set as the customer requests, as well as the registry entries (e.g. display). Customer-supplied software can also be added.
SKU: WCE-CUSTIMAGE
500,- €

software accessory Failsafe Flash Filesystem (F3S)
The Failsafe Flash Filesystem F3S offers transaction safety on file level and therefore guarantees the consistency of the data, even in case of a blackout or other interferences while writing.
SKU: WCE-F3S
1,000,- €

software accessory Display Customization (RGB orLVDS Display under Windows)
Creation of a driver for the touch controller under WCE7 or WEC13 for your F&S board.

SKU: EW-SW-RGB-LVDS-Windows
500,- €


Display and Display Kit

ET070080 B.LCD.15 Display 7" RGB Display with resistive Touch
7" TFT (800x480) EDT ET070080DH6
SKU: B.LCD.15
120,- €

armStone efus  RGB Kit Displaykit RGB
7" WVGA display with RGB interface and touch panel, as well as the fitting connection cable (40pol film cable), display adapter and touch cable
SKU: NDCU-ADP/TFT-KIT
170,- €


Cable

B.MKAB.23 40poles Film Cable
Film Cable, A40pol., 0,5mm, l=200mm for displays
To connect a 7" EDT Display (B.LCD.15)
SKU: B.MKAB.23
10,- €


Adapters

I2C Extension I2C Erweiterung
Circuit for an external extension with GPIOs, AID, PWM and matrix keyboard. This external circuit is connected via I²C Bus.
SKU: NDCU-ADP/I2C
80,- €

JTAG Debug Adapter JTAG Debug Adapter
To program Cortex-M4.
SKU: ADP-CMSIS
69,- €

Adapter RGB to DVI NetDCU/ PicoCOM DVI Adapter
Connects NetDCUA5/ PicoCOMA5/ A9X to a DVI/ HDMI screen.
SKU: ADP-RGB2DVI
50,- €


Workshop

linux windows embedded compact workshop Workshops
Workshops for F&S Boards with Windows Embedded Compact or Linux - Beginner Workshops - Qt 5 - Asymmetric Multiprocessing - Secure Boot
SKU: NDCU-WS1
Request

Other Accessories

USBSTICK1 USB Stick
USB Memory Stick with common memory size (2GB+) and imprinted F&S logo. The USB Stick was tested on all current F&S boards.
SKU: USBSTICK.1
20,- €
